Description
Brand - IKO
Item Number - LRT 5710 IKO

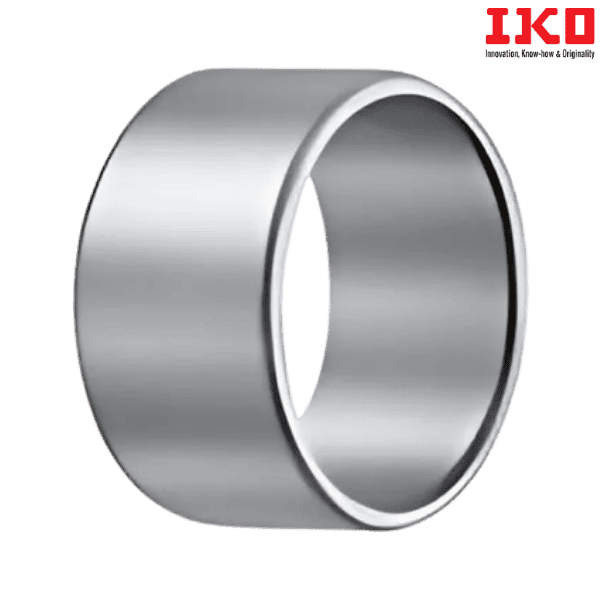

Category - Inner Ring for General Usage
Shaft Diameter (mm) - 5

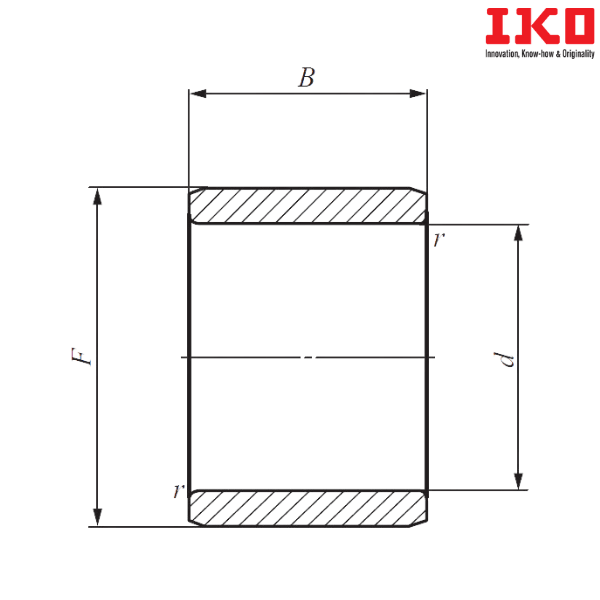

Boundary Dimension (d) mm - 5
Boundary Dimension (F) mm - 7
Boundary Dimension (B) mm - 10
Minimum Boundary Dimension (rs) mm - 0.15
Minimum Standard Mounting Dimension (da) mm - 6.2
Maximum Standard Mounting Dimension (da) mm - 6.7
Weight (kg) - 0.0014
Probable Assembled Bearings - RNA 495
** Images are for representation purposes only
