Description
Brand - IKO
Item Number - LRT 506040 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 50

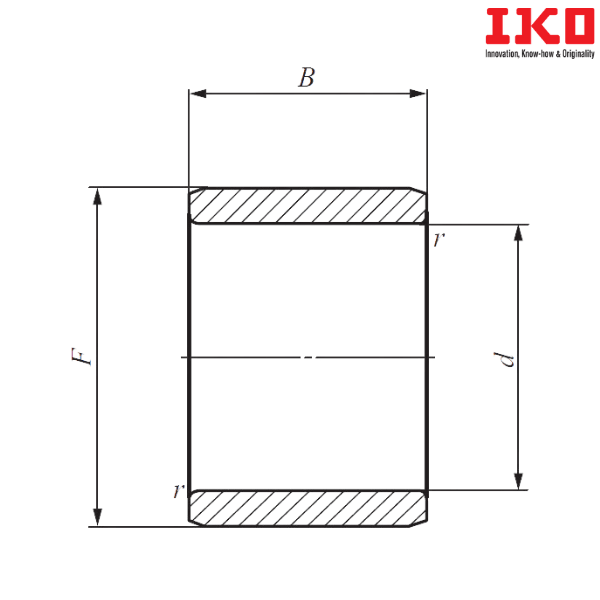

Boundary Dimension (d) mm - 50
Boundary Dimension (F) mm - 60
Boundary Dimension (B) mm - 40
Minimum Boundary Dimension (rs) mm - 1
Minimum Standard Mounting Dimension (da) mm - 55
Maximum Standard Mounting Dimension (da) mm - 59
Weight (kg) - 0.265
Probable Assembled Bearings - RNAFW 607840

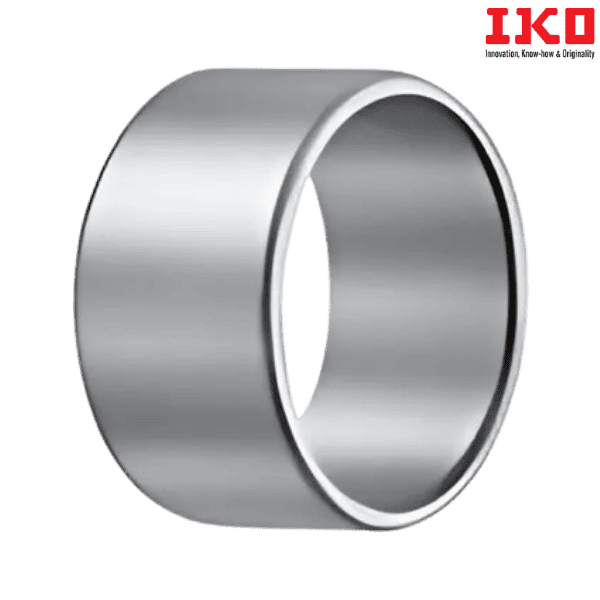

** Images are for representation purposes only
