Description
Brand - IKO
Item Number - LRT 505822 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 50

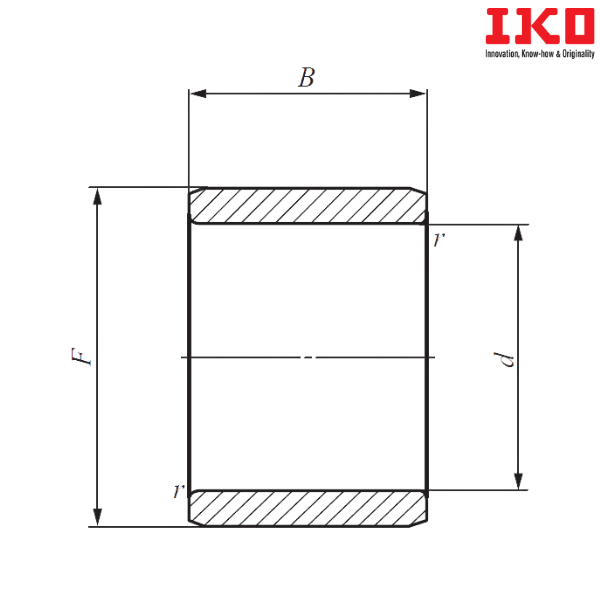

Boundary Dimension (d) mm - 50
Boundary Dimension (F) mm - 58
Boundary Dimension (B) mm - 22
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Standard Mounting Dimension (da) mm - 54
Maximum Standard Mounting Dimension (da) mm - 57
Weight (kg) - 0.116
Probable Assembled Bearings - RNA 4910
** Images are for representation purposes only
