Description
Brand - IKO
Item Number - LRT 505535 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 50

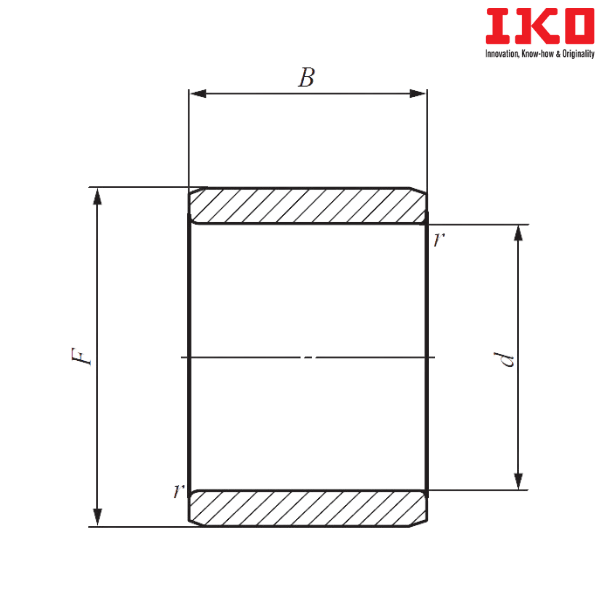

Boundary Dimension (d) mm - 50
Boundary Dimension (F) mm - 55
Boundary Dimension (B) mm - 35
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Standard Mounting Dimension (da) mm - 52
Maximum Standard Mounting Dimension (da) mm - 54
Weight (kg) - 0.11
Probable Assembled Bearings - TAF 556835

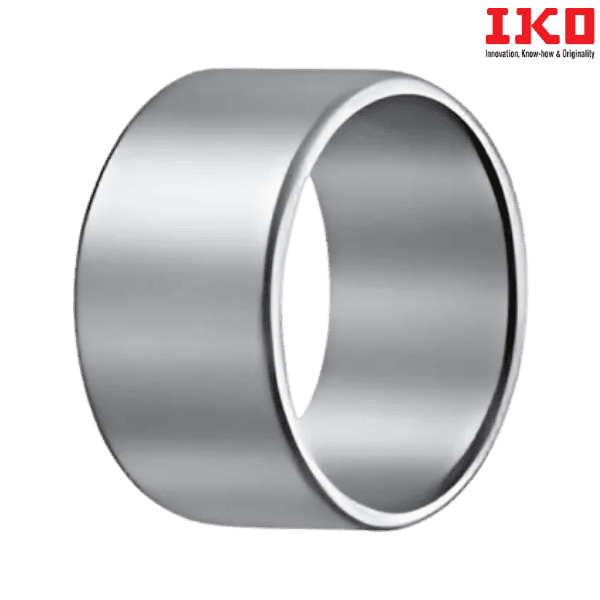

** Images are for representation purposes only
