Description
Brand - IKO
Item Number - LRT 455520 IKO

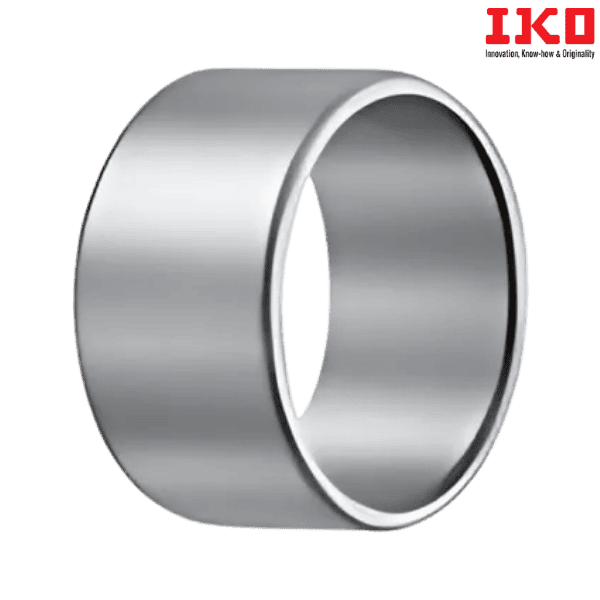

Category - Inner Ring for General Usage
Shaft Diameter (mm) - 45

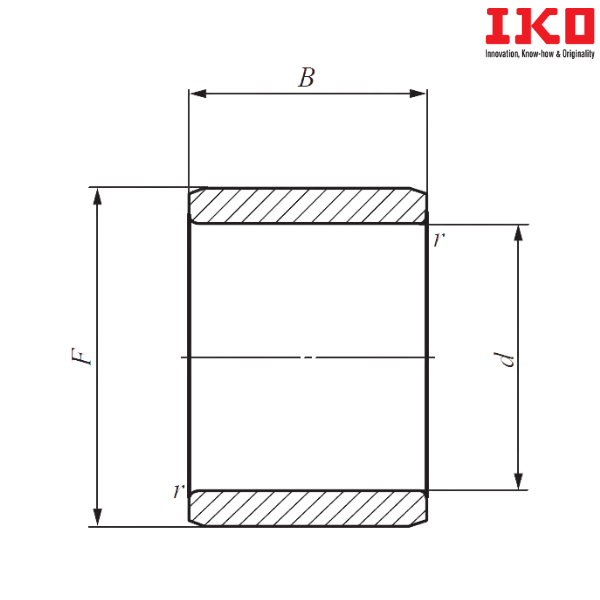

Boundary Dimension (d) mm - 45
Boundary Dimension (F) mm - 55
Boundary Dimension (B) mm - 20
Minimum Boundary Dimension (rs) mm - 1
Minimum Standard Mounting Dimension (da) mm - 50
Maximum Standard Mounting Dimension (da) mm - 54
Weight (kg) - 0.12
Probable Assembled Bearings - RNAF 557220
** Images are for representation purposes only
