Description
Brand - IKO
Item Number - LRT 121613 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 12

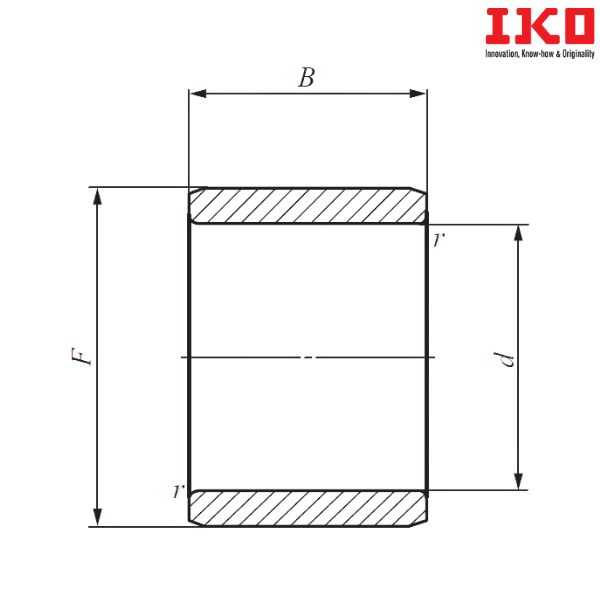

Boundary Dimension (d) mm - 12
Boundary Dimension (F) mm - 16
Boundary Dimension (B) mm - 13
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 15
Weight (kg) - 0.0085
Probable Assembled Bearings - RNA 4901, RNAF 162413

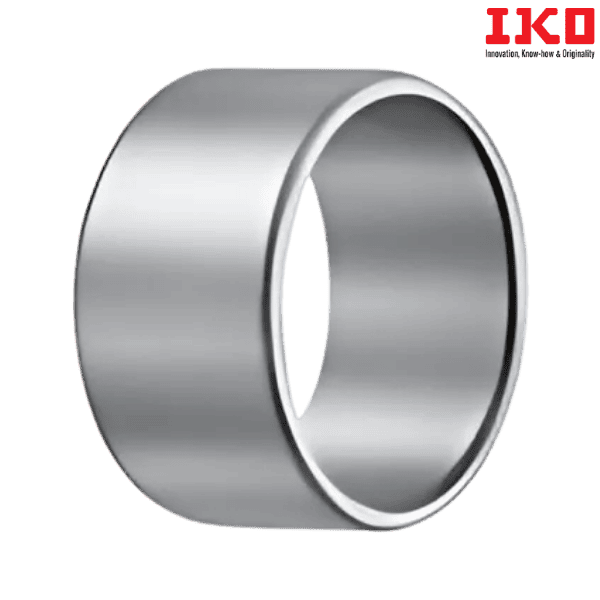

** Images are for representation purposes only
