Description
Brand - IKO
Item Number - LRT 101413 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 10

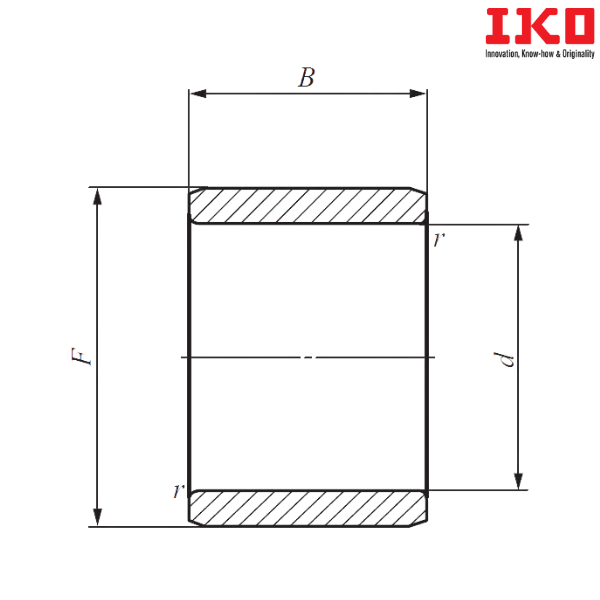

Boundary Dimension (d) mm - 10
Boundary Dimension (F) mm - 14
Boundary Dimension (B) mm - 13
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Standard Mounting Dimension (da) mm - 12
Maximum Standard Mounting Dimension (da) mm - 13
Weight (kg) - 0.0075
Probable Assembled Bearings - RNA 4900, RNAF 142213

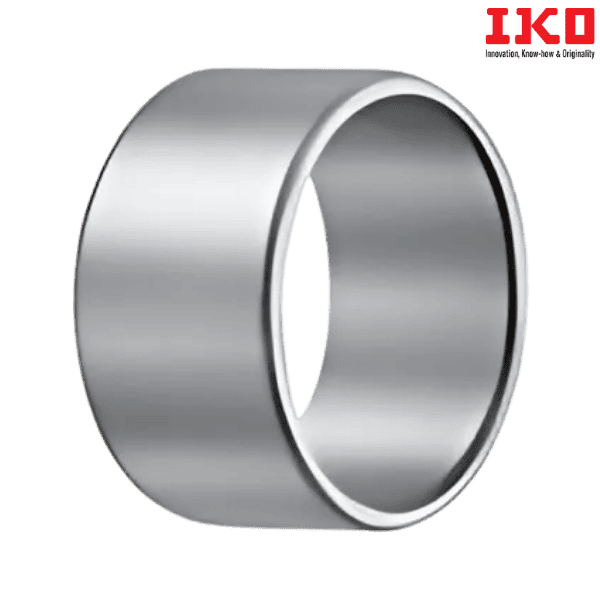

** Images are for representation purposes only
