Description
Brand - NADELLA
Item Number - LRE 11 NADELLA
Category - Adjusting Nut (LRE Series)
Principal Dimensions & Load Ratings (Metric):
Thread (A) - 35 x 1.5
Dimension (D) Ø - 50 mm
Dimension (B) Ø - 45 mm
Dimension (C) - 12 mm
Dimension (b x h) - 5 x 2
Grub Screw (Hc) - 2 x M6
Unlocking Torque - 150 Nm*
Maximum Axial Load - 77700 N
Weight - 0.1 kg
Other salient points to be noted:
• LRE nuts are suitable for applications that demand high radial clamping force
• With two clamping springs placed symmetrically at 180°, they offer two key benefits over LR nuts: Enhanced balance for higher rotational speeds, Double the unlocking torque in the same size
• The radial force is applied to the threaded clamping spring by tightening the two Hc grub screws.
• A flat surface perpendicular to the threaded side enables precise adjustment and secure locking of bearings and other tightly toleranced mechanical components
• Material: High elastic limit steel
• Peripheral notches: 4 x 90°
• Grub screw: Hc type with dog-point tip 14.9
• Standard manufacturing: 4H class precison threading, right-hand thread, Fine-ground contact face, Marquing on the opposite side, Black oxide
• Other versions are also available upon request: Fine-ground threads, Left-hand thread, 2 twinned screws for increased locking torque, Other sizes, Other materials
* Values obtained with Hc grub screws: M 6 screw - clamping torque 8 Nm

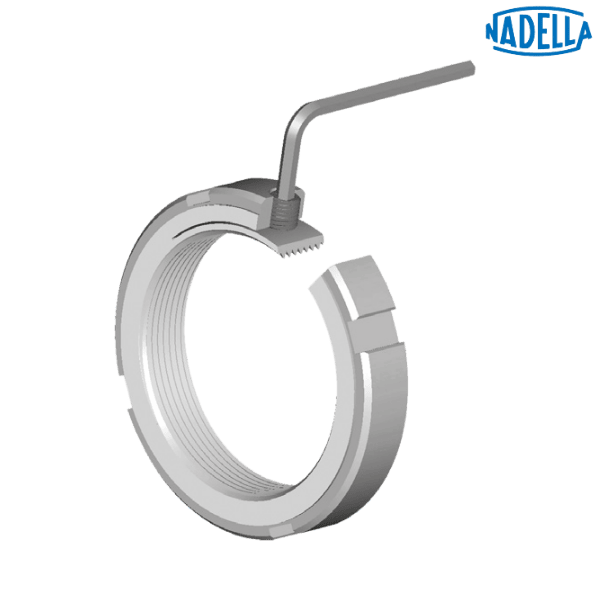

♦ ♦ Images are for representation purposes only
