Description
Brand - IKO
Item Number - LRBZ 61016 B IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375

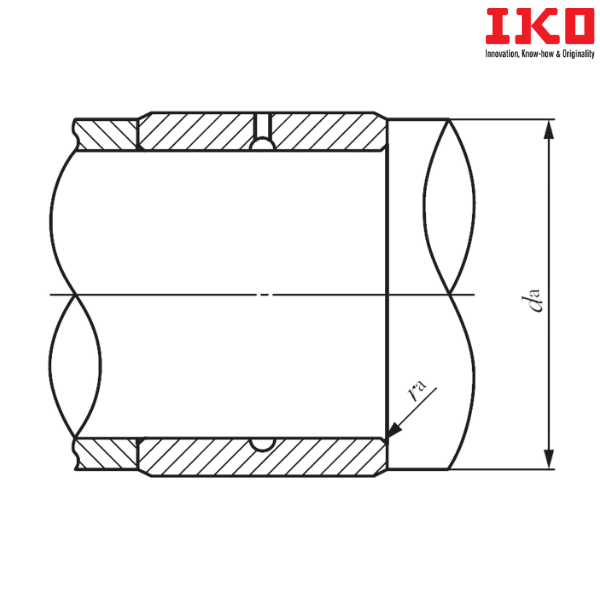

Boundary Dimension (d) mm - 9.525
Boundary Dimension (d) inch - 0.375
Boundary Dimension (F) mm - 15.875
Boundary Dimension (F) inch - 0.625
Boundary Dimension (B) mm - 25.65
Minimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 14.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.025
Probable Assembled Bearings - BR 101816UU
** Images are for representation purposes only
