Description
Brand - IKO
Item Number - LRBZ 243020 B IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 38.1
Shaft Diameter (inch) - 1.5

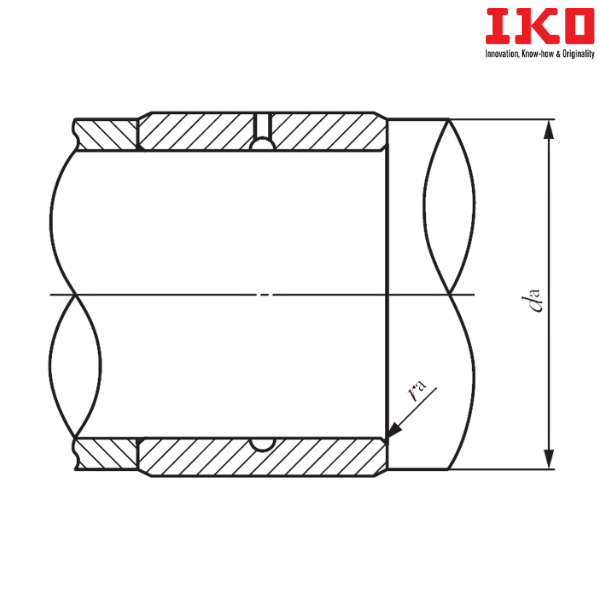

Boundary Dimension (d) mm - 38.1
Boundary Dimension (d) inch - 1.5
Boundary Dimension (F) mm - 47.625
Boundary Dimension (F) inch - 1.875
Boundary Dimension (B) mm - 32
Minimum Standard Mounting Dimension (da) mm - 43.3
Maximum Standard Mounting Dimension (da) mm - 45
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.16
Probable Assembled Bearings - BR 303920UU
** Images are for representation purposes only
