Description
Brand - IKO

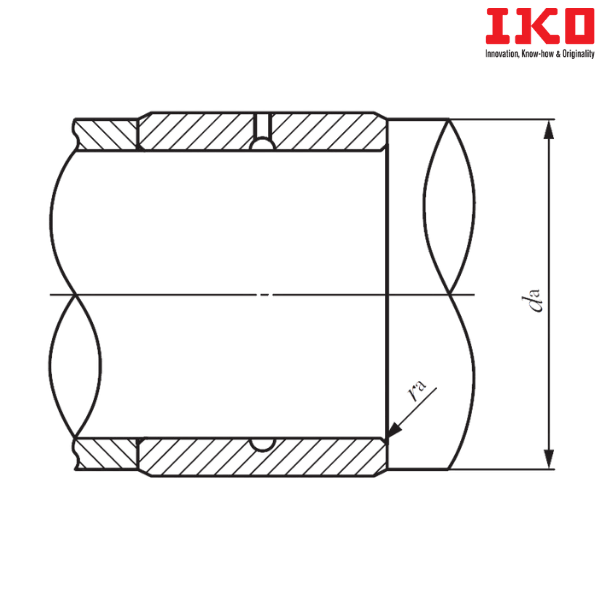

Item Number - LRBZ 242820 B IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 38.1
Shaft Diameter (inch) - 1.5
Boundary Dimension (d) mm - 38.1
Boundary Dimension (d) inch - 1.5
Boundary Dimension (F) mm - 44.45
Boundary Dimension (F) inch - 1.75
Boundary Dimension (B) mm - 32
Minimum Standard Mounting Dimension (da) mm - 43.3
Maximum Standard Mounting Dimension (da) mm - 43.4
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.1
Probable Assembled Bearings - BR 283720UU
** Images are for representation purposes only
