Description
Brand - IKO
Item Number - LRB 81212 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 12.7
Shaft Diameter (inch) - 0.5
Boundary Dimension (d) mm - 12.7
Boundary Dimension (d) inch - 0.5
Boundary Dimension (F) mm - 19.05
Boundary Dimension (F) inch - 0.75
Boundary Dimension (B) mm - 19.3
Minimum Standard Mounting Dimension (da) mm - 17.5
Maximum Standard Mounting Dimension (da) mm - 18
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.0235
Probable Assembled Bearings - BR 122012

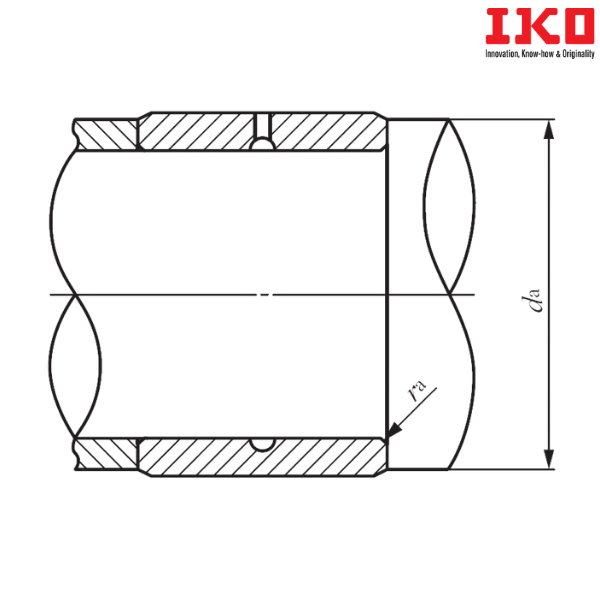

** Images are for representation purposes only
