Description
Brand - IKO
Item Number - LRB 61012 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375

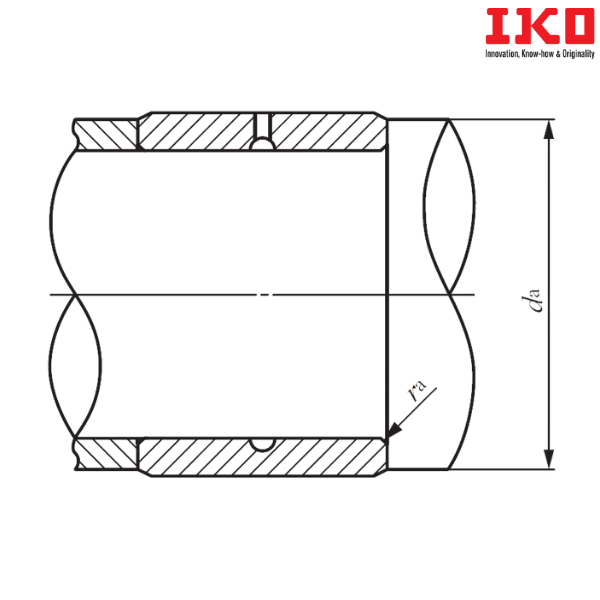

Boundary Dimension (d) mm - 9.525
Boundary Dimension (d) inch - 0.375
Boundary Dimension (F) mm - 15.875
Boundary Dimension (F) inch - 0.625
Boundary Dimension (B) mm - 19.3
Minimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 14.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.0185
Probable Assembled Bearings - BR 101812
** Images are for representation purposes only
