LRB 566432 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - LRB 566432 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 88.9
Shaft Diameter (inch) - 3.5

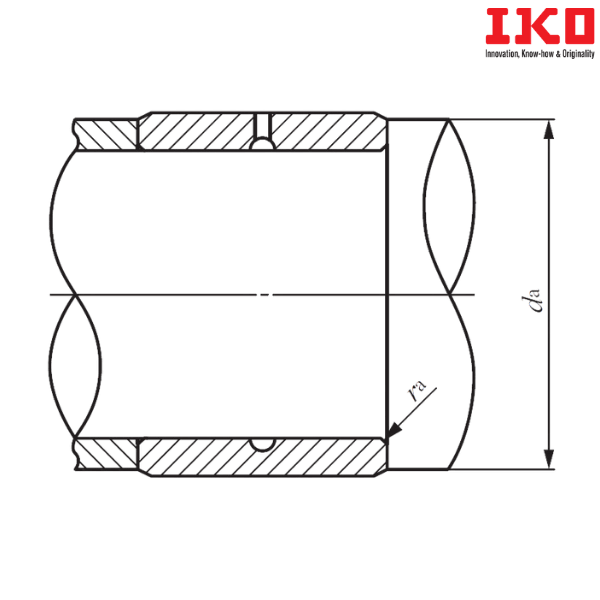

Boundary Dimension (d) mm - 88.9
Boundary Dimension (d) inch - 3.5
Boundary Dimension (F) mm - 101.6
Boundary Dimension (F) inch - 4
Boundary Dimension (B) mm - 51.05
Minimum Standard Mounting Dimension (da) mm - 97
Maximum Standard Mounting Dimension (da) mm - 99
Maximum Standard Mounting Dimension (ras) mm - 2.5
Weight (kg) - 0.75
Probable Assembled Bearings - BR 648032

** Images are for representation purposes only
