Description
Brand - IKO
Item Number - LRB 445228 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 69.85
Shaft Diameter (inch) - 2.75
Boundary Dimension (d) mm - 69.85
Boundary Dimension (d) inch - 2.75
Boundary Dimension (F) mm - 82.55
Boundary Dimension (F) inch - 3.25
Boundary Dimension (B) mm - 44.7
Minimum Standard Mounting Dimension (da) mm - 77
Maximum Standard Mounting Dimension (da) mm - 79
Maximum Standard Mounting Dimension (ras) mm - 2
Weight (kg) - 0.53
Probable Assembled Bearings - BR 526828

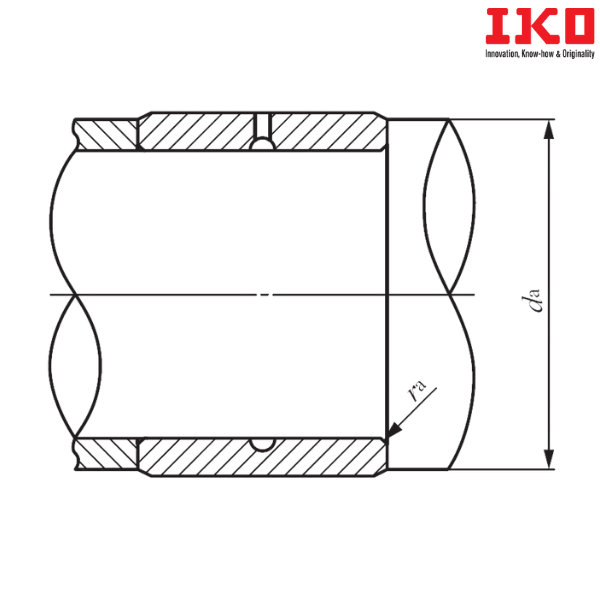

** Images are for representation purposes only
