Description
Brand - IKO
Item Number - LRB 404828 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 63.5
Shaft Diameter (inch) - 2.5

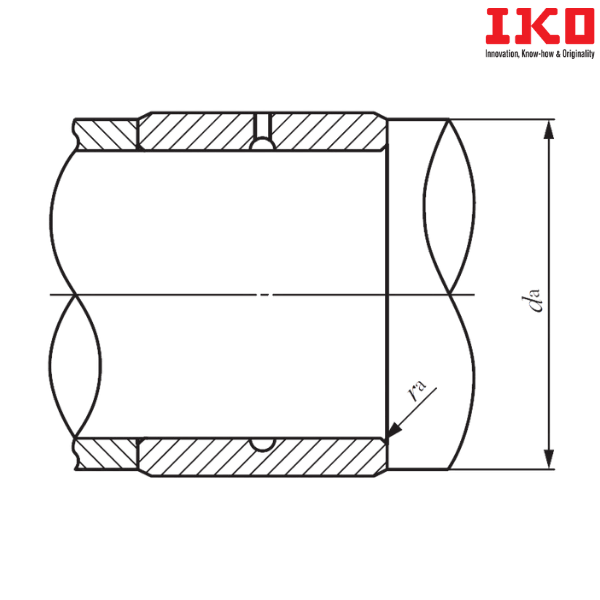

Boundary Dimension (d) mm - 63.5
Boundary Dimension (d) inch - 2.5
Boundary Dimension (F) mm - 76.2
Boundary Dimension (F) inch - 3
Boundary Dimension (B) mm - 44.7
Minimum Standard Mounting Dimension (da) mm - 71
Maximum Standard Mounting Dimension (da) mm - 73
Maximum Standard Mounting Dimension (ras) mm - 2
Weight (kg) - 0.48
Probable Assembled Bearings - BR 486028
** Images are for representation purposes only
