Description
Brand - IKO
Item Number - LRB 182216 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 28.575
Shaft Diameter (inch) - 1.125

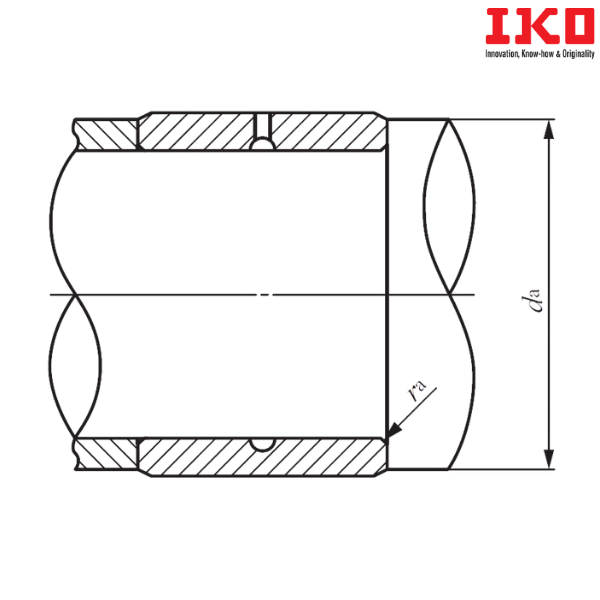

Boundary Dimension (d) mm - 28.575
Boundary Dimension (d) inch - 1.125
Boundary Dimension (F) mm - 34.925
Boundary Dimension (F) inch - 1.375
Boundary Dimension (B) mm - 25.65
Minimum Standard Mounting Dimension (da) mm - 33.5
Maximum Standard Mounting Dimension (da) mm - 33.9
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.063
Probable Assembled Bearings - BR 223016
