LRB 101416 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - LRB 101416 IKO
Category - Inner Ring for General Usage Inch Series
Shaft Diameter (mm) - 15.875
Shaft Diameter (inch) - 0.625

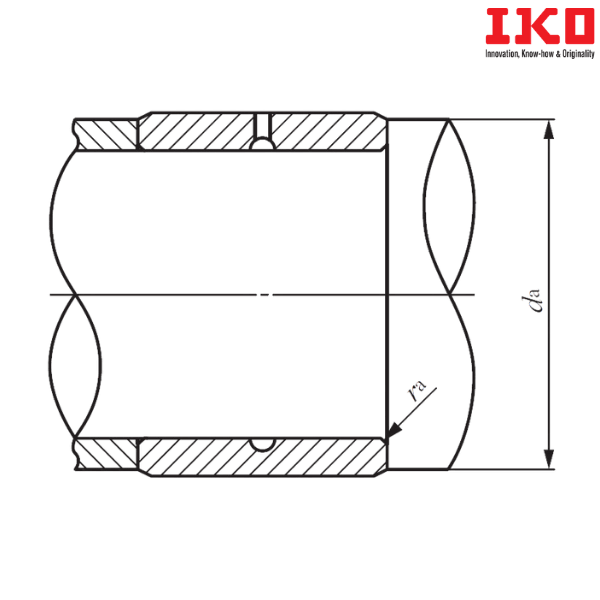

Boundary Dimension (d) mm - 15.875
Boundary Dimension (d) inch - 0.625
Boundary Dimension (F) mm - 22.225
Boundary Dimension (F) inch - 0.875
Boundary Dimension (B) mm - 25.65
Minimum Standard Mounting Dimension (da) mm - 21
Maximum Standard Mounting Dimension (da) mm - 21.2
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.0375
Probable Assembled Bearings - BR 142216

** Images are for representation purposes only
