Description
Brand - ZEN
Item Number - LR6001-NPP ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 12
Outer Ring Dimension (D) mm - 30
Width (B) mm - 8
Radius (rs) mm - 0.3
Dynamic Load Rating (N) - 5300
Static Load Rating (N) - 2750
Limiting Speed (NPP and NPPU) - 15
Weight (kg) - 0.025
Radial Play - 0.002-0.013
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

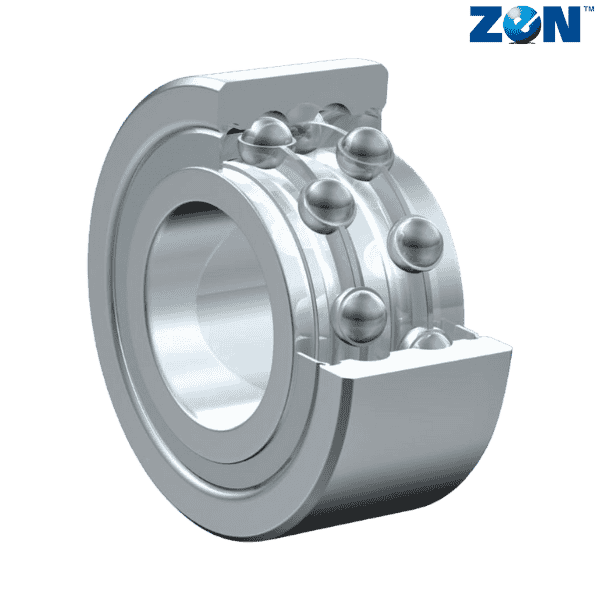

** Images are for representation purposes only
