Description
Brand - ZEN
Item Number - LR5308-KDDU ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 40
Outer Ring Dimension (D) mm - 100
Width (B) mm - 36.5
Radius (rs) mm - 1.5
Dynamic Load Rating (N) - 56000
Static Load Rating (N) - 4200
Limiting Speed (NPP and NPPU) - 2.3
Limiting Speed (KDD and KDDU) - 3.3
Weight (kg) - 1.2
Radial Play - 0.006-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

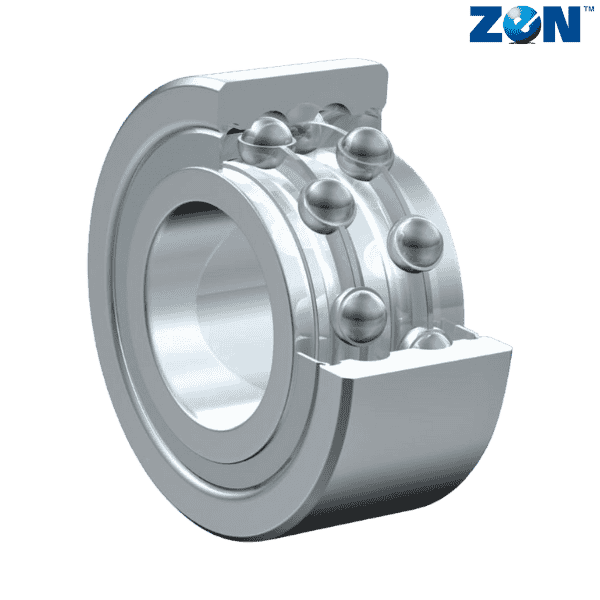

** Images are for representation purposes only
