Description
Brand - ZEN
Item Number - LR5305-KDDU ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 25
Outer Ring Dimension (D) mm - 72
Width (B) mm - 25.4
Radius (rs) mm - 1.1
Dynamic Load Rating (N) - 27500
Static Load Rating (N) - 19500
Limiting Speed (NPP and NPPU) - 3.9
Limiting Speed (KDD and KDDU) - 5.5
Weight (kg) - 0.5
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

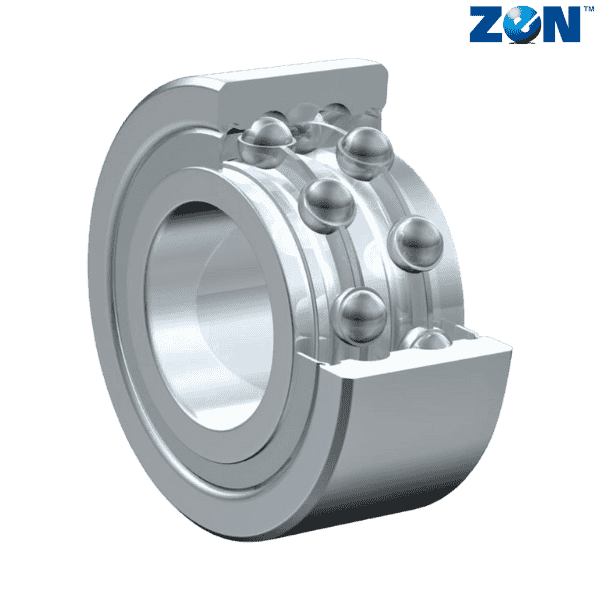

** Images are for representation purposes only
