Description
Brand - ZEN
Item Number - LR5304-NPPU ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 62
Width (B) mm - 22.2
Radius (rs) mm - 1.1
Dynamic Load Rating (N) - 21100
Static Load Rating (N) - 14500
Limiting Speed (NPP and NPPU) - 4.5
Limiting Speed (KDD and KDDU) - 6.5
Weight (kg) - 0.34
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

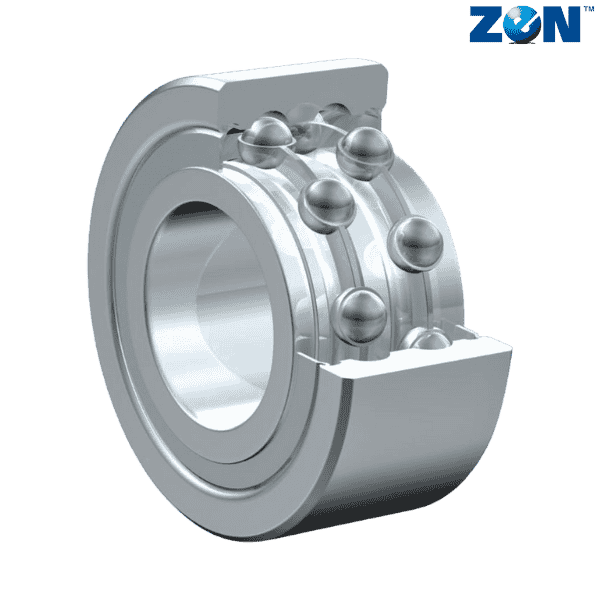

** Images are for representation purposes only
