Description
Brand - ZEN
Item Number - LR5206-KDDU ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 30
Outer Ring Dimension (D) mm - 72
Width (B) mm - 23.8
Radius (rs) mm - 1
Dynamic Load Rating (N) - 24600
Static Load Rating (N) - 21400
Limiting Speed (NPP and NPPU) - 3.5
Limiting Speed (KDD and KDDU) - 5
Weight (kg) - 0.51
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

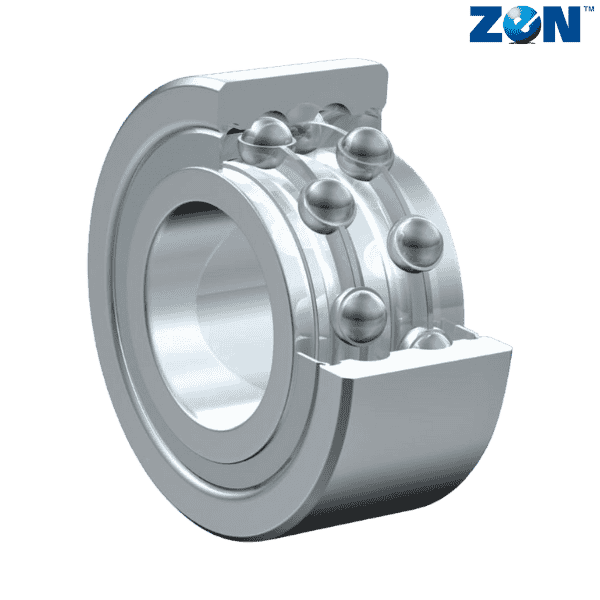

** Images are for representation purposes only
