Description
Brand - ZEN
Item Number - LR5204-KDD ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 52
Width (B) mm - 20.6
Radius (rs) mm - 1
Dynamic Load Rating (N) - 15800
Static Load Rating (N) - 10500
Limiting Speed (NPP and NPPU) - 5
Limiting Speed (KDD and KDDU) - 7
Weight (kg) - 0.23
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

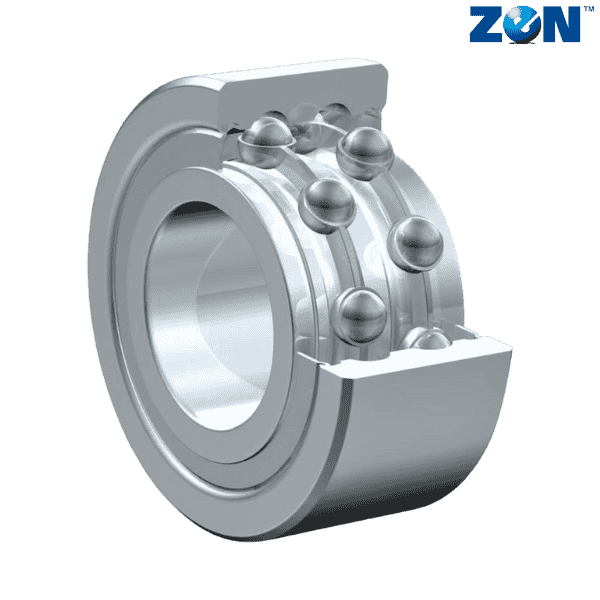

** Images are for representation purposes only
