Description
Brand - ZEN
Item Number - LR5203-KDDU ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 17
Outer Ring Dimension (D) mm - 47
Width (B) mm - 17.5
Radius (rs) mm - 0.6
Dynamic Load Rating (N) - 12600
Static Load Rating (N) - 8200
Limiting Speed (NPP and NPPU) - 5.5
Limiting Speed (KDD and KDDU) - 7
Weight (kg) - 0.17
Radial Play - 0.003-0.018
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

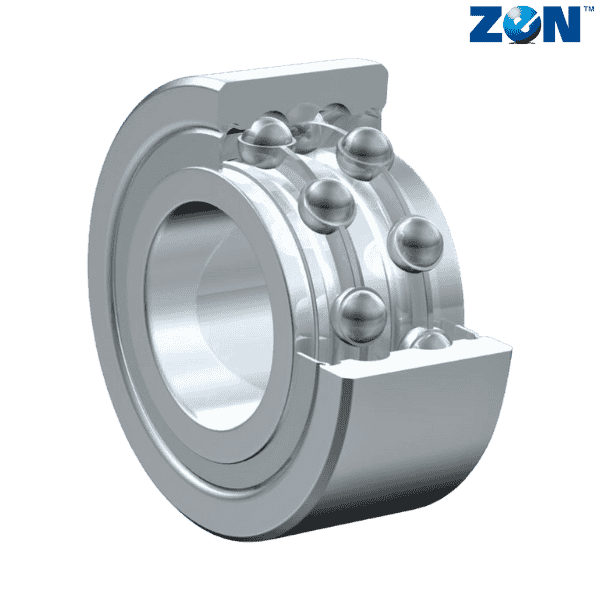

** Images are for representation purposes only
