Description
Brand - ZEN
Item Number - LR5003-NPPU ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 17
Outer Ring Dimension (D) mm - 40
Width (B) mm - 14
Radius (rs) mm - 0.3
Dynamic Load Rating (N) - 7700
Static Load Rating (N) - 5200
Limiting Speed (NPP and NPPU) - 6
Weight (kg) - 0.07
Radial Play - 0.003-0.018
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

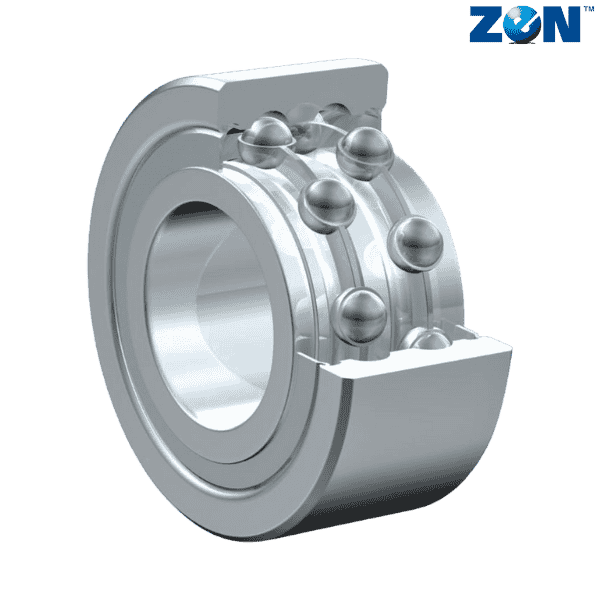

** Images are for representation purposes only
