Description
Brand - ZEN
Item Number - LR207-NPP ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 35
Outer Ring Dimension (D) mm - 80
Width (B) mm - 17
Radius (rs) mm - 1.1
Dynamic Load Rating (N) - 20200
Static Load Rating (N) - 11900
Limiting Speed (NPP and NPPU) - 4.5
Weight (kg) - 0.4
Radial Play - 0.006-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

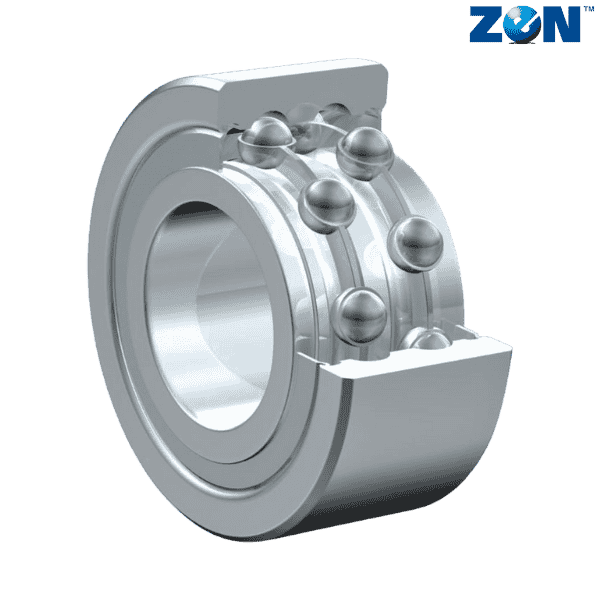

** Images are for representation purposes only
