Description
Brand - ZEN
Item Number - LR200-NPP ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 10
Outer Ring Dimension (D) mm - 32
Width (B) mm - 9
Radius (rs) mm - 0.6
Dynamic Load Rating (N) - 4350
Static Load Rating (N) - 2130
Limiting Speed (NPP and NPPU) - 13
Weight (kg) - 0.05
Radial Play - 0.002-0.013
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

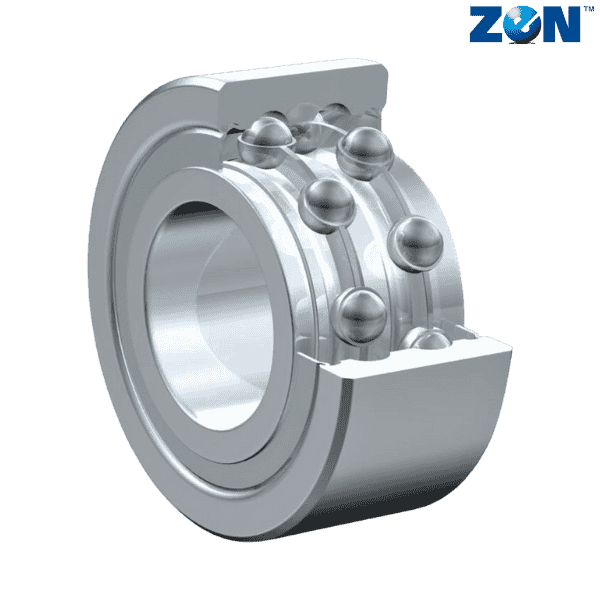

** Images are for representation purposes only
