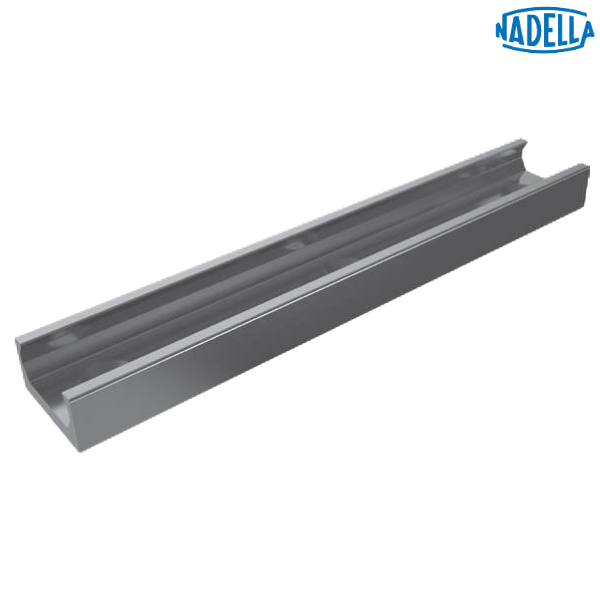

LML 20 NADELLA

Brand - NADELLA
Item Number - LML 20 NADELLA
Category - Rail Totally in Aluminium with Two Internal Raceways

Principal Dimensions & Load Ratings (Metric):
Dimension (B) - 20 mm
Dimension (H) - 10.3 mm
Dimension (H1) - 6.8 mm
Dimension (H2) - 3.8 mm
Dimension (D) - 4.5 mm
Dimension (G) - 9.5 mm
Dimension (g) - 2.5 mm
Dimension (I) - 80 mm
Dimension (I1) - 40 mm
Moments of Inertia (Jx) - 0.068 mm
Moments of Inertia (Jy) - 0.427 mm
Weight - 0.235 kg/m
Maximum Dimension (L) - 2800 mm

Description of Prefix:
LML - Rail totally in aluminium with two internal raceways for U-line system

Other salient points to be noted:
Surface hard anodised

Standard Rail Examples:
• LML 20 650
• LML 20 1200
• LML 20 2600

Hole Layout:
• For Holes according to catalogue, Suffix will be SB, e.g. LML 20 1200 SB
• For Holes according to drawing, Suffix will be NZ, e.g. LML 20 1200 NZ
• For Without holes, Suffix will be NF, e.g. LML 20 1200 NF

♦ ♦ Images are for representation purposes only
