LM814849/LM814810 (LM814810EA) TIMKEN

Brand - TIMKEN
Item Number - LM814849/LM814810 (LM814810EA) TIMKEN
Also Known As - LM814849 - LM814810 (LM814810EA)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 77.788
Bore Diameter (d) inch - 3.0625
Outer Diameter (D) mm - 117.475
Outer Diameter (D) inch - 4.625
Width (T) mm - 50.8
Width (T) inch - 2
Width (B) mm - 50.8
Width (B) inch - 2
Dynamic Radial Rating (C1) N - 205000
Dynamic Radial Rating (C1) lbf - 46100
Factor (e) - 0.51
Factor (Y1) - 1.32
Factor (Y2) - 1.97
Dynamic Radial Rating (90 million revolutions) (C90) N - 30600
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 6870
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 26700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5990
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 53200
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 12000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.15
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 85
Backing Shoulder Diameter (db) inch - 3.35
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 105
Cup Frontface Backing Diameter (Da) inch - 4.13
Weight (kg) - 1.9
Weight (lbs) - 4.16
Outer Spacer - LM814810EA
Inner Part Number - LM814849
Outer Part Number - LM814810
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

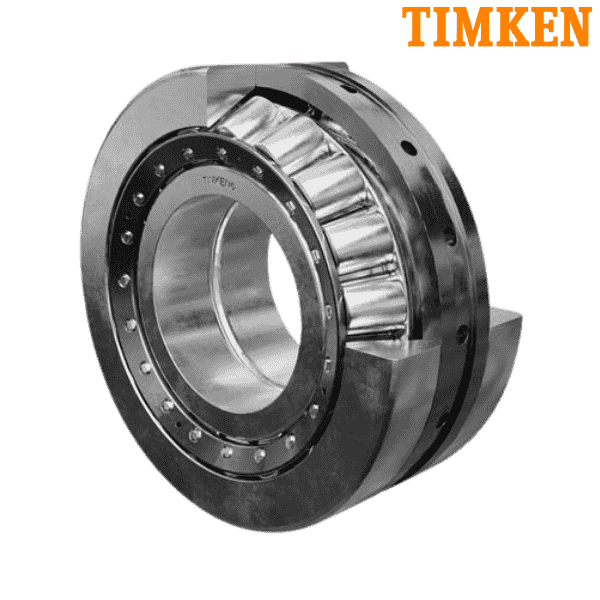

** Images are for representation purposes only
