Description
Brand - TIMKEN
Item Number - LM806649/LM806610 (K114294R/K114295R) TIMKEN
Also Known As - LM806649 - LM806610 (K114294R - K114295R)
Category - Double Row Tapered Roller Bearing (2S Type)
Bore Diameter (d) mm - 53.975
Bore Diameter (d) inch - 2.125
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Width (T) mm - 43.637
Width (T) inch - 1.718
Width (C) mm - 32.522
Width (C) inch - 1.2804
Dynamic Radial Rating (C1) N - 114000
Dynamic Radial Rating (C1) lbf - 25600
Factor (e) - 0.55
Factor (Y1) - 1.24
Factor (Y2) - 1.84
Dynamic Radial Rating (90 million revolutions) (C90) N - 17000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 3820
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 15900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3570
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 29500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 6640
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.07

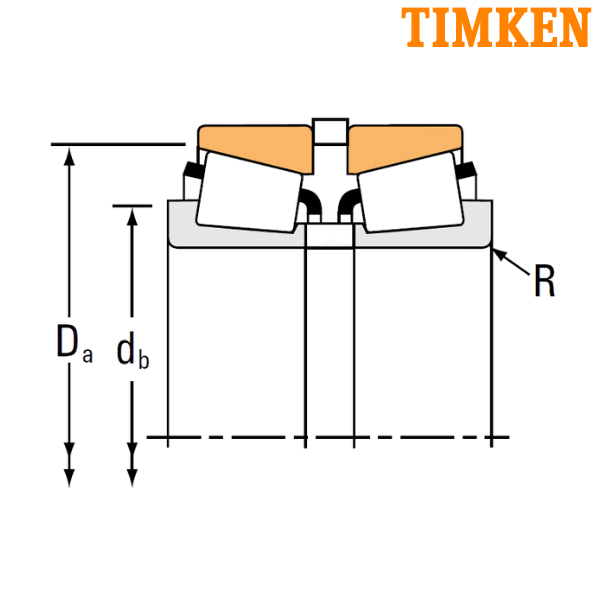

Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Backing Shoulder Diameter (db) mm - 65
Backing Shoulder Diameter (db) inch - 2.56
Maximum Housing Fillet Radius (r) mm - 85
Maximum Housing Fillet Radius (r) inch - 3.35

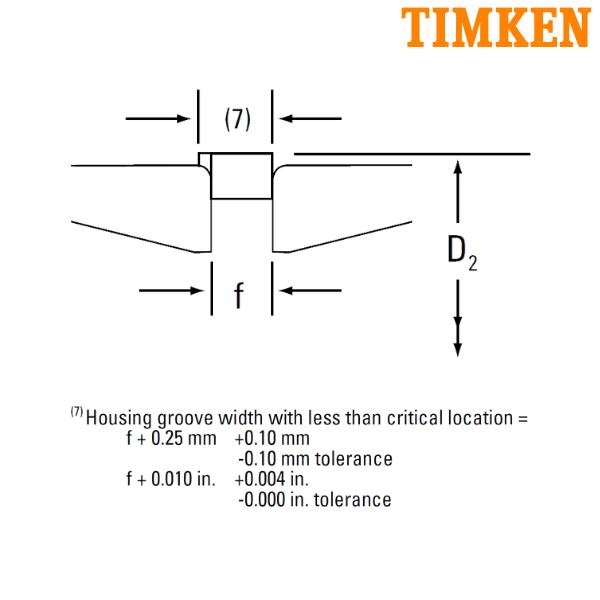

Snap Ring Groove (D2) mm - 92.61
Snap Ring Groove (D2) inch - 3.65
Snap Ring Groove (f) mm - 5.54
Snap Ring Groove (f) inch - 0.22
Weight (kg) - 0.94
Weight (lbs) - 2.08
Inner Spacer - K114294R
Outer Spacer - K114295R
Inner Part Number - LM806649
Outer Part Number - LM806610
2S - Two Single-Row Bearings with Snap Ring Spacer
** Images are for representation purposes only
