Description
Brand - ZEN
Item Number - LM8-S-UU ZEN
Category - Linear Bearings (LM Series)
Type - Seal
Ball Circuit (mm) - 4
Weight (kg) - 0.011

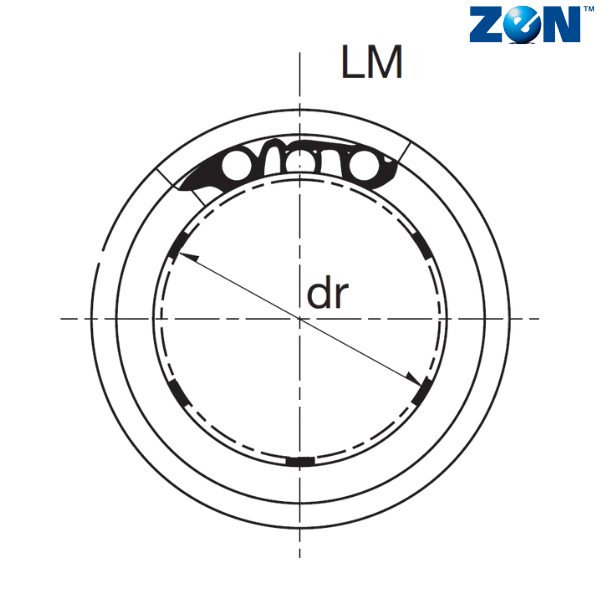

dr (mm) - 8

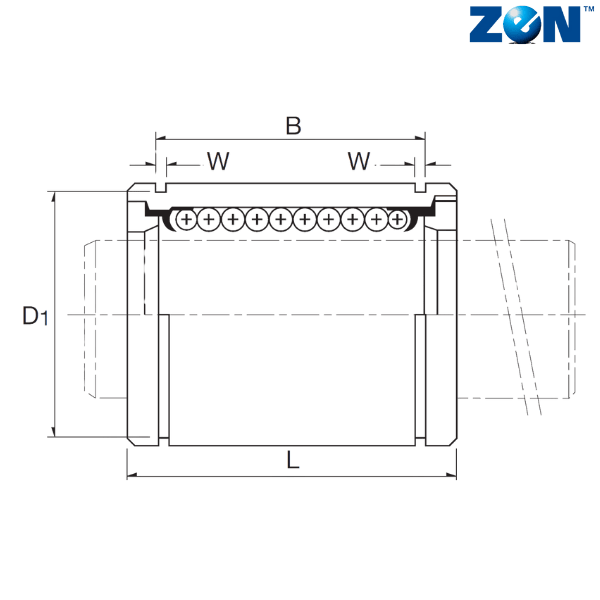

W (mm) - 1.1
D1 (mm) - 14.3
h (mm) - 1
Tolerance (D) mm - 15
Tolerance (L) mm - 17
Tolerance (B) mm - 11.5
Radial Clearance - (-5)
Outer Ring Material - AISI52100
Ball Material - AISI52100

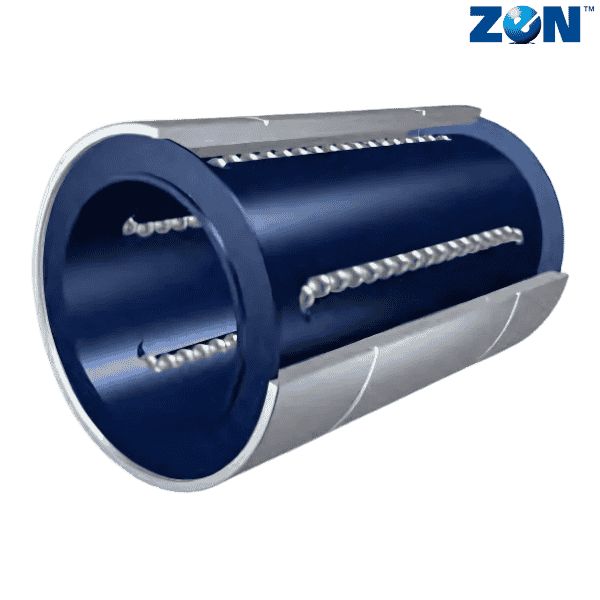

** Images are for representation purposes only
