LM769349TD/LM769310 TIMKEN

Brand - TIMKEN
Item Number - LM769349TD/LM769310 TIMKEN
Also KNown As - LM769349TD - LM769310
Category - Double Row Tapered Roller Bearing (TDIT Type)

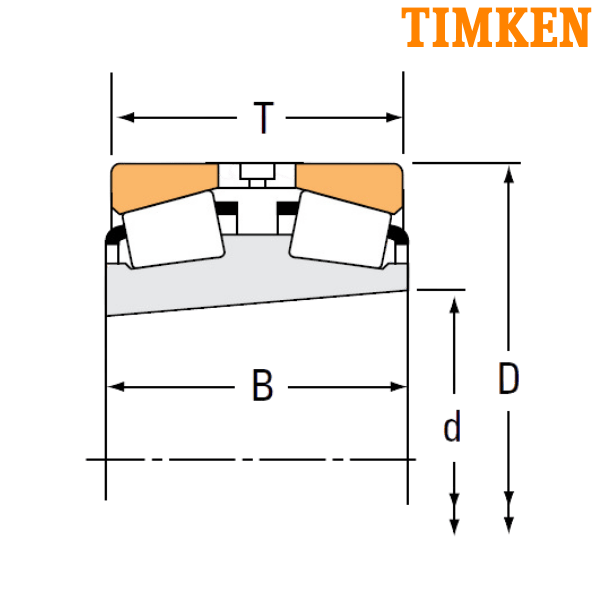

Bore Diameter (d) mm - 431.8
Bore Diameter (d) inch - 17
Taper - 0.05
Outer Diameter (D) mm - 571.5
Outer Diameter (D) inch - 22.5
Width (T) mm - 161.925
Width (T) inch - 6.375
Double Inner Ring Width (B) mm - 161.925
Double Inner Ring Width (B) inch - 6.375
Dynamic Load Rating (C1) N - 3320000
Dynamic Load Rating (C1) lbf - 747000
Factor (e) - 0.44
Factor (Y1) - 1.54
Factor (Y2) - 2.29
Dynamic Radial Rating (90 million revolutions) (C90) N - 495000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 111000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 371000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 83500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 862000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 194000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.33

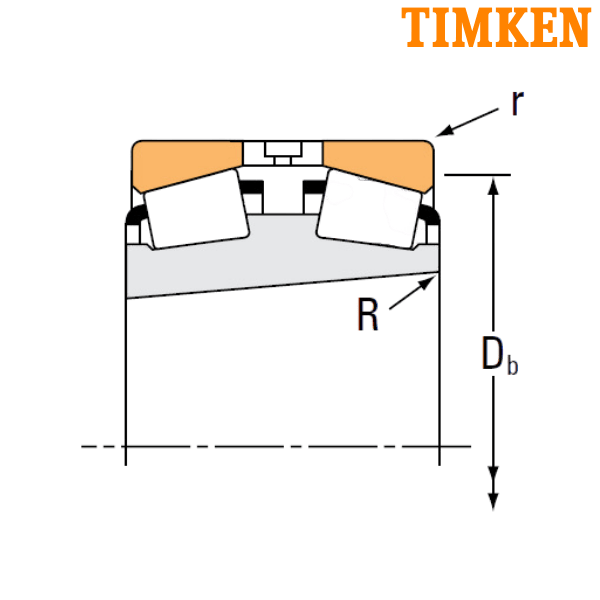

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Cup Backface Backing Diameter (Db) mm - 534
Cup Backface Backing Diameter (Db) inch - 21.02
Geometry Factor (G1) - 5114.6
Geometry Factor (G2) - 614.2
Geometry Factor (Cg) - 0.2426
Weight (kg) - 119.48
Weight (lbs) - 263.42
Inner Part Number - LM769349TD
Outer Part Number - LM769310

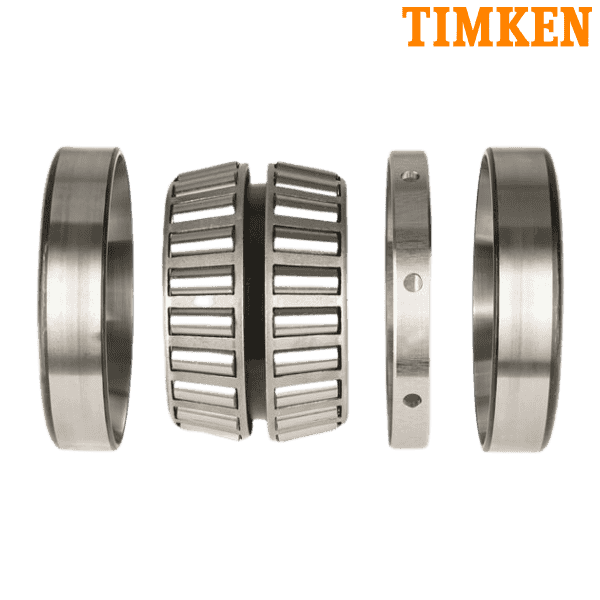

TDIT - Double Inner-Ring Bearing with a Tapered Bore
