LM767745D/LM767710 TIMKEN

Brand - TIMKEN
Item Number - LM767745D/LM767710 TIMKEN
Also Known As - LM767745D - LM767710
Category - Double Row Tapered Roller Bearing (TDI Type)

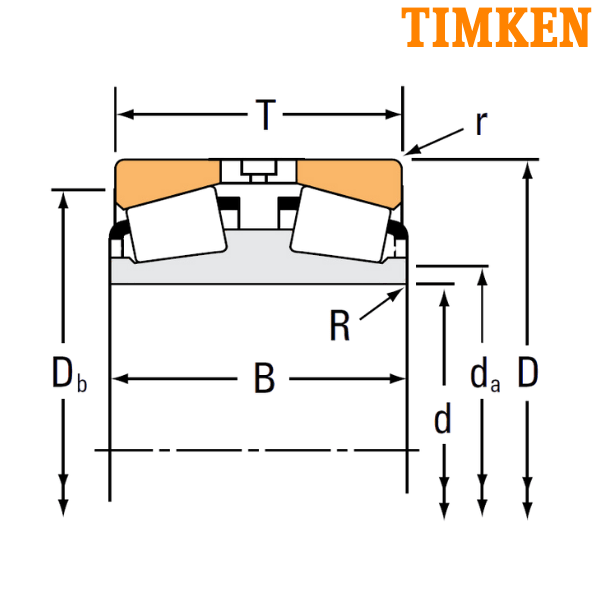

Bore Diameter (d) mm - 393.7
Bore Diameter (d) inch - 15.5
Outer Diameter (D) mm - 546.1
Outer Diameter (D) inch - 21.5
Bearing Width across Cups (T) mm - 138.112
Bearing Width across Cups (T) inch - 5.4375
Double Cone Width (B) mm - 138.112
Double Cone Width (B) inch - 5.4375
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 2280000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 513000
Factor (e) - 0.5
Factor (Y1) - 1.4
Factor (Y2) - 2.1
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 340000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 76400
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 276000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 62000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 592000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 133000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.23
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 418
Cone Frontface Backing Diameter (da) inch - 16.46
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Cup Backface Backing Diameter (Db) mm - 510
Cup Backface Backing Diameter (Db) inch - 20.08
Geometry Factor (G1) - 3387.8
Geometry Factor (G2) - 464.9
Geometry Factor (Cg) - 0.2163
Weight (kg) - 98.85
Weight (lbs) - 217.93
Inner Part Number - LM767745D
Outer Part Number - LM767710
TDI - Double Inner Ring

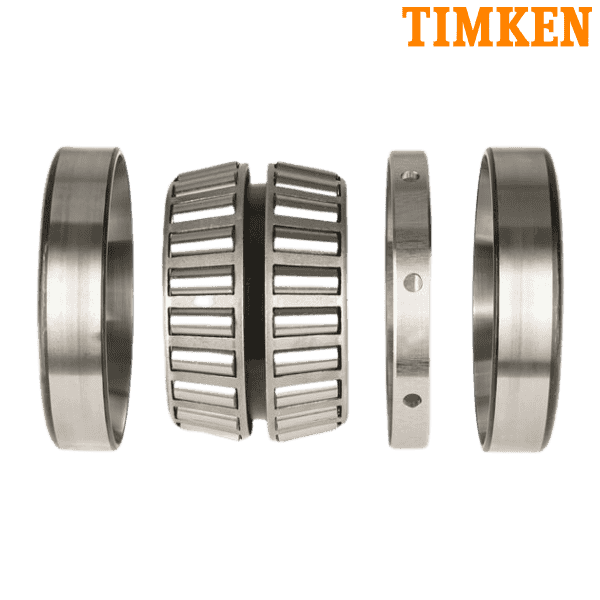

** Images are for representation purposes only
