LM67048/LM67010 (LM67000LA) TIMKEN

Brand - TIMKEN
Item Number - LM67048/LM67010 (LM67000LA) TIMKEN
Also Known As - LM67048 - LM67010 (LM67000LA)
Category - Single Row Tapered Roller Bearing (TSL Type)

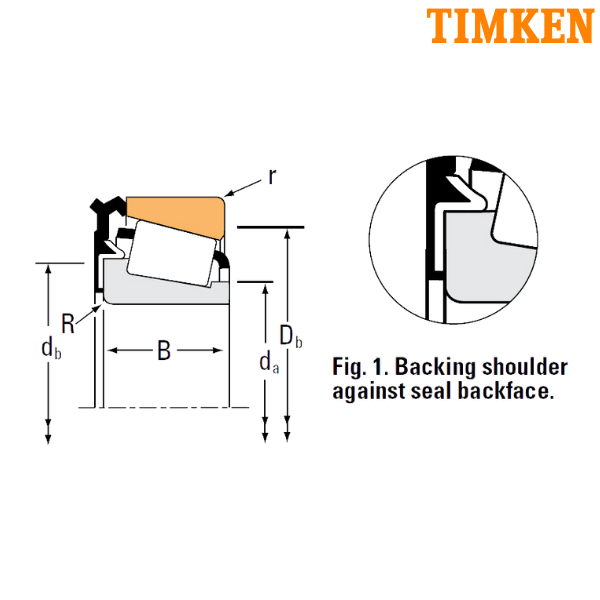

Bore Diameter (d) mm - 31.75
Bore Diameter (d) inch - 1.25
Outer Diameter (D) mm - 59.131
Outer Diameter (D) inch - 2.328
Bearing Width (T) mm - 16.637
Bearing Width (T) inch - 0.655
Total Width (T1) mm - 17.78
Total Width (T1) inch - 0.7
Dynamic Load Rating (C1) N - 46700
Dynamic Load Rating (C1) lbf - 10500
Factor (e) - 0.41
Factor (Y) - 1.46
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 12100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 2720
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 8550
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1920
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.42
Basic Static Radial Load Rating (C0) N - 44600
Basic Static Radial Load Rating (C0) lbf - 10000
Inner Ring Width (B) mm - 16.764
Inner Ring Width (B) inch - 0.66
Effective Center Location (a) mm - -3
Effective Center Location (a) inch - -0.12
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 36
Cone Frontface Backing Diameter (da) inch - 1.42
Cone Backface Backing Diameter (db) mm - 42.5
Cone Backface Backing Diameter (db) inch - 1.67
Maximum Housing Fillet Radius (r) mm - 1.3
Maximum Housing Fillet Radius (r) inch - 0.05
Cup Backface Backing Diameter (Db) mm - 52
Cup Backface Backing Diameter (Db) inch - 2.05
Geometry Factor (G1) - 12.8
Geometry Factor (G2) - 9.7
Geometry Factor (Cg) - 0.0612
Weight (kg) - 0.18
Weight (lbs) - 0.39
Inner Part Number - LM67048
Outer Part Number - LM67010
Seal Part Number - LM67000LA

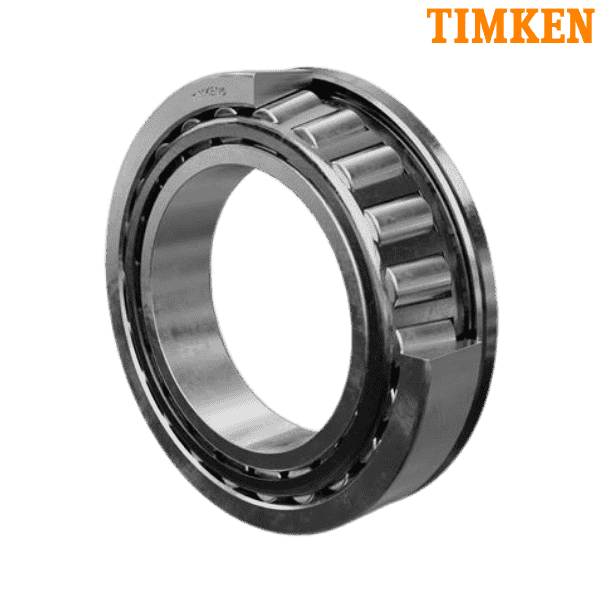

TSL - Single-Row Bearing with a DUO-FACE PLUS Seal Pressed on to the Large Rib of the Inner Ring

** Images are for representation purposes only
