Description
Brand - TIMKEN
Item Number - LM67048/LM67010 (K106817R/K106610R) TIMKEN
Also Known As - LM67048 - LM67010 (K106817R - K106610R)
Category - Double Row Tapered Roller Bearing (2S Type)
Bore Diameter (d) mm - 31.75
Bore Diameter (d) inch - 1.25
Outer Diameter (D) mm - 59.131
Outer Diameter (D) inch - 2.328
Width (T) mm - 35.712
Width (T) inch - 1.406
Width (C) mm - 27.584
Width (C) inch - 1.086
Dynamic Radial Rating (C1) N - 81300
Dynamic Radial Rating (C1) lbf - 18300
Factor (e) - 0.41
Factor (Y1) - 1.64
Factor (Y2) - 2.44
Dynamic Radial Rating (90 million revolutions) (C90) N - 12100
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 2720
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 8550
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1920
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 21100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 4740
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.42

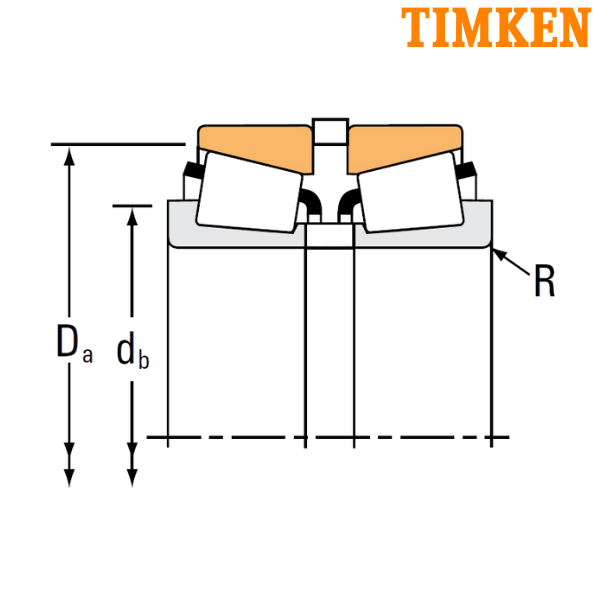

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 42.5
Backing Shoulder Diameter (db) inch - 1.67
Maximum Housing Fillet Radius (r) mm - 56
Maximum Housing Fillet Radius (r) inch - 2.2

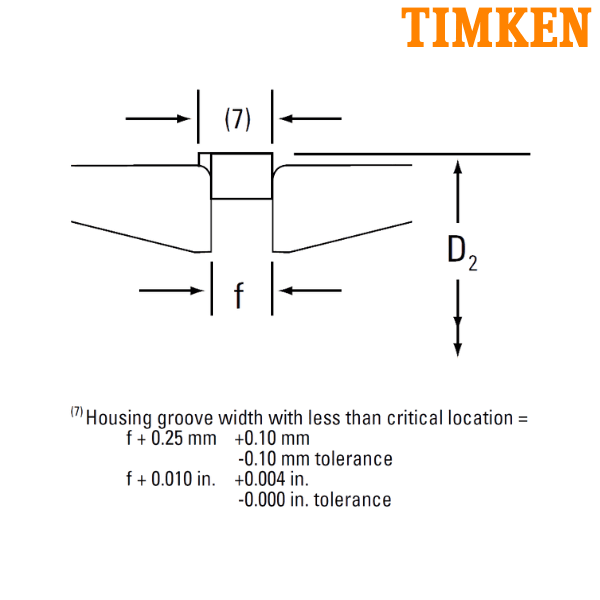

Snap Ring Groove (D2) mm - 61.11
Snap Ring Groove (D2) inch - 2.41
Snap Ring Groove (f) mm - 3.96
Snap Ring Groove (f) inch - 0.16
Weight (kg) - 0.39
Weight (lbs) - 0.84
Inner Spacer - K106817R
Outer Spacer - K106610R
Inner Part Number - LM67048
Outer Part Number - LM67010
2S - Two Single-Row Bearings with Snap Ring Spacer
** Images are for representation purposes only
