Description
Brand - ZEN
Item Number - LM60 ZEN
Category - Linear Bearings (LM Series)
Type - Standard
Ball Circuit (mm) - 6
Weight (kg) - 2
dr (mm) - 60
W (mm) - 3.15
D1 (mm) - 86.5
h (mm) - 3
h1 (mm) - 30
Tolerance (D) mm - 90
Tolerance (L) mm - 110
Tolerance (B) mm - 85
Radial Clearance - (-16)
Outer Ring Material - AISI52100
Ball Material - AISI52100

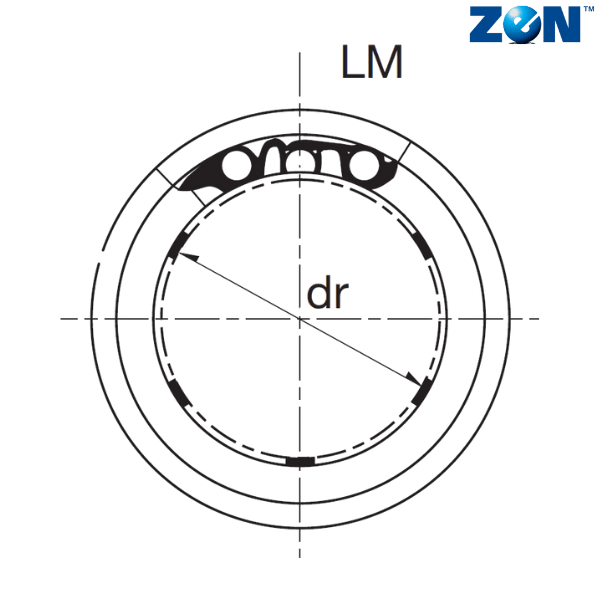

** Images are for representation purposes only
