Description
Brand - ZEN
Item Number - LM6 ZEN
Category - Linear Bearings (LM Series)
Type - Standard
Ball Circuit (mm) - 4
Weight (kg) - 0.008

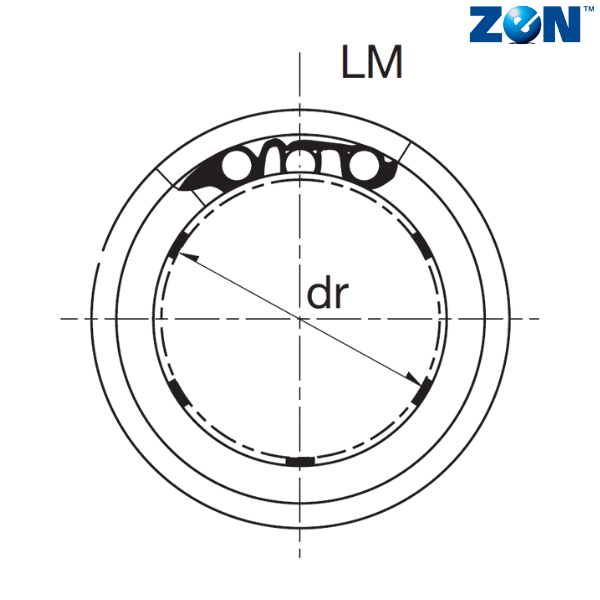

dr (mm) - 6

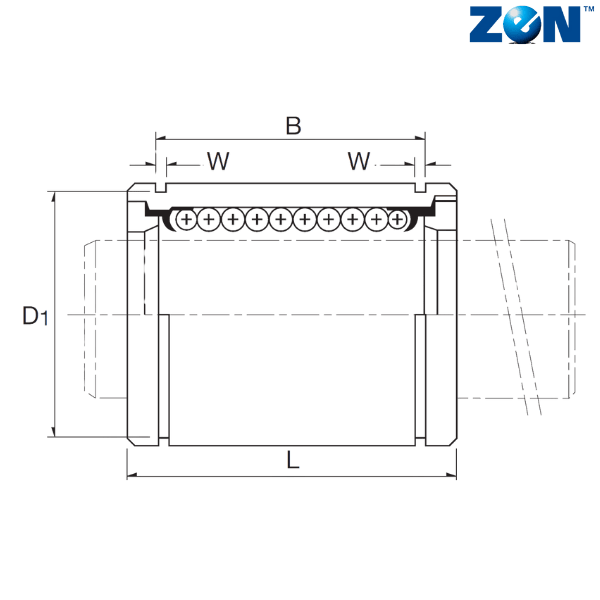

W (mm) - 1.1
D1 (mm) - 11.5
h (mm) - 1
Tolerance (D) mm - 12
Tolerance (L) mm - 19
Tolerance (B) mm - 13.5
Radial Clearance - (-5)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
