Description
Brand - ZEN
Item Number - LM50-AJ ZEN
Category - Linear Bearings (LM Series)
Type - Adjustable
Ball Circuit (mm) - 6
Weight (kg) - 1.58

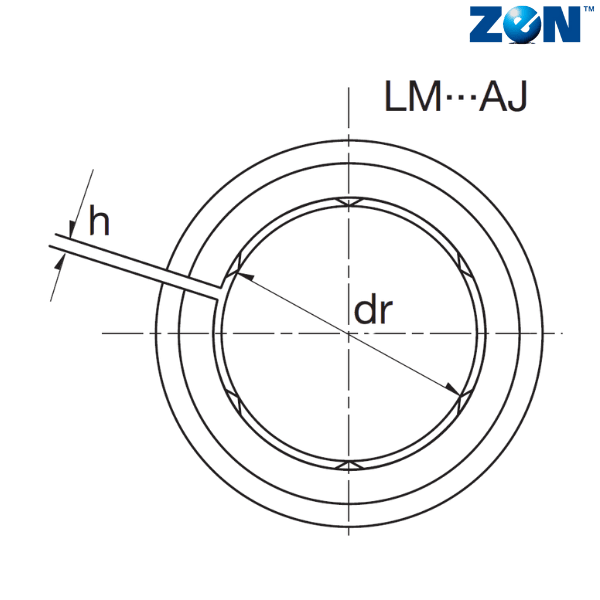

dr (mm) - 50
W (mm) - 2.6
D1 (mm) - 76.5
h (mm) - 3
h1 (mm) - 25
Tolerance (D) mm - 80
Tolerance (L) mm - 100
Tolerance (B) mm - 74
Radial Clearance - (-13)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
