Description
Brand - ZEN
Item Number - LM5 ZEN
Category - Linear Bearings (LM Series)
Type - Standard
Ball Circuit (mm) - 4
Weight (kg) - 0.004

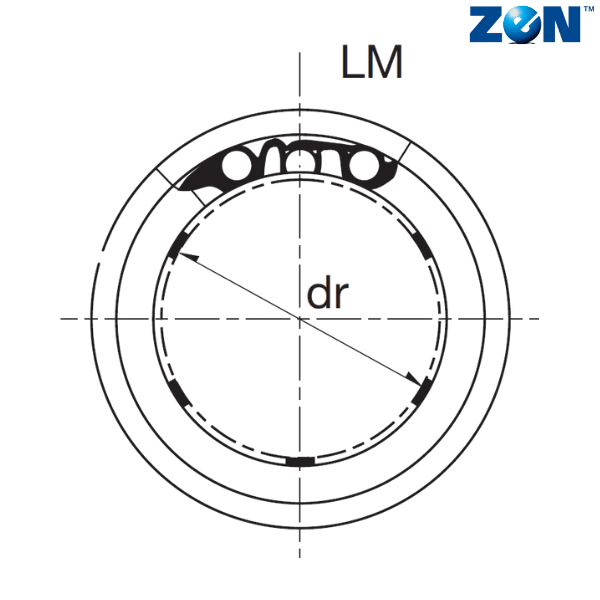

dr (mm) - 5
W (mm) - 1.1
D1 (mm) - 9.6
Tolerance (D) mm - 10
Tolerance (L) mm - 15
Tolerance (B) mm - 10.2
Radial Clearance - (-3)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
