LM48548/LM48510 (LM48500LA) TIMKEN

Brand - TIMKEN
Item Number - LM48548/LM48510 (LM48500LA) TIMKEN
Also Known As - LM48548 - LM48510 (LM48500LA)

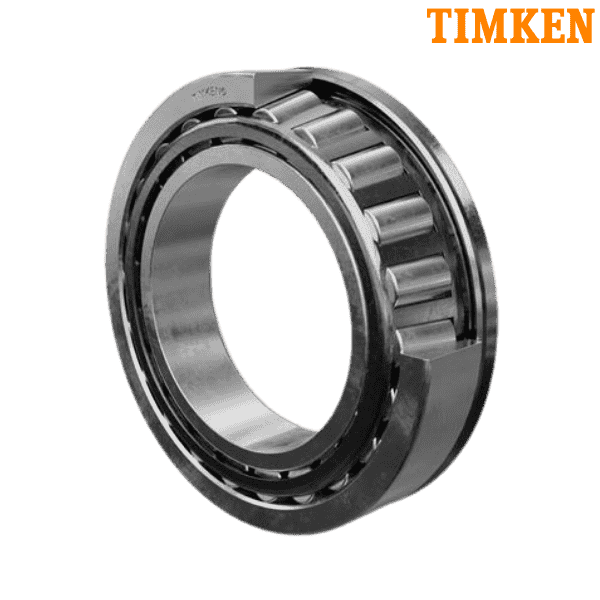

Category - Single Row Tapered Roller Bearing (TSL Type)
Bore Diameter (d) mm - 34.925
Bore Diameter (d) inch - 1.375
Outer Diameter (D) mm - 65.088
Outer Diameter (D) inch - 2.5625
Bearing Width (T) mm - 18.796
Bearing Width (T) inch - 0.74
Total Width (T1) mm - 19.94
Total Width (T1) inch - 0.785
Dynamic Load Rating (C1) N - 64600
Dynamic Load Rating (C1) lbf - 14500
Factor (e) - 0.38
Factor (Y) - 1.59
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 16700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3760
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 10800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2430
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.55
Basic Static Radial Load Rating (C0) N - 63100
Basic Static Radial Load Rating (C0) lbf - 14200

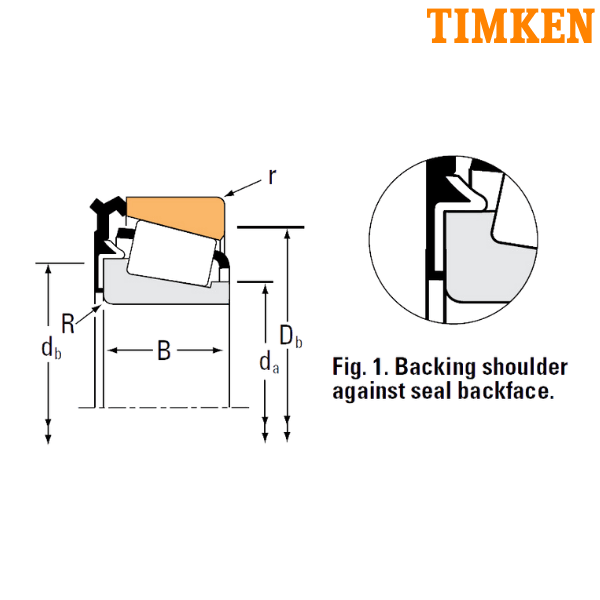

Inner Ring Width (B) mm - 18.288
Inner Ring Width (B) inch - 0.72
Effective Center Location (a) mm - -3.6
Effective Center Location (a) inch - -0.14
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 41.5
Cone Frontface Backing Diameter (da) inch - 1.63
Cone Backface Backing Diameter (db) mm - 48
Cone Backface Backing Diameter (db) inch - 1.89
Maximum Housing Fillet Radius (r) mm - 1.3
Maximum Housing Fillet Radius (r) inch - 0.05
Cup Backface Backing Diameter (Db) mm - 58
Cup Backface Backing Diameter (Db) inch - 2.28
Geometry Factor (G1) - 18
Geometry Factor (G2) - 10.6
Geometry Factor (Cg) - 0.0666
Weight (kg) - 0.25
Weight (lbs) - 0.54
Inner Part Number - LM48548
Outer Part Number - LM48510
Seal Part Number - LM48500LA
TSL - Single-Row Bearing with a DUO-FACE PLUS Seal Pressed on to the Large Rib of the Inner Ring

** Images are for representation purposes only
