Description
Brand - ZEN
Item Number - LM40-OP ZEN
Category - Linear Bearings (LM Series)
Type - Open
Ball Circuit (mm) - 6
Weight (kg) - 0.585

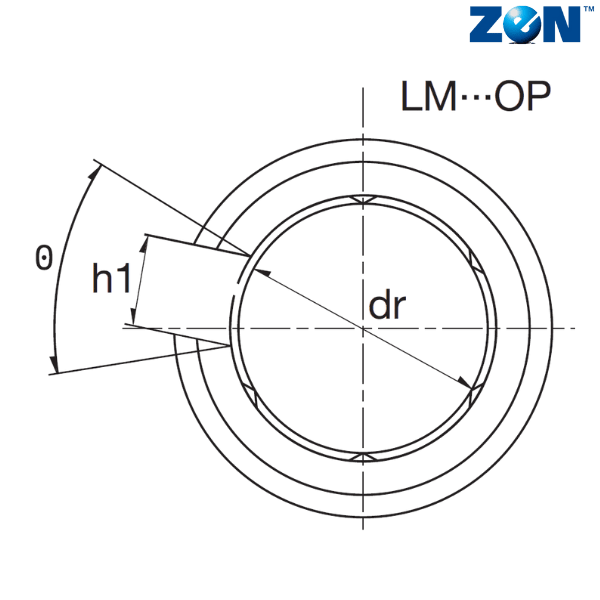

dr (mm) - 40
W (mm) - 2.1
D1 (mm) - 57
h (mm) - 3
h1 (mm) - 20
Tolerance (D) mm - 60
Tolerance (L) mm - 80
Tolerance (B) mm - 60.5
Radial Clearance - (-13)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
