Description
Brand - ZEN
Item Number - LM35-UU ZEN
Category - Linear Bearings (LM Series)
Type - Seal
Ball Circuit (mm) - 6
Weight (kg) - 0.39

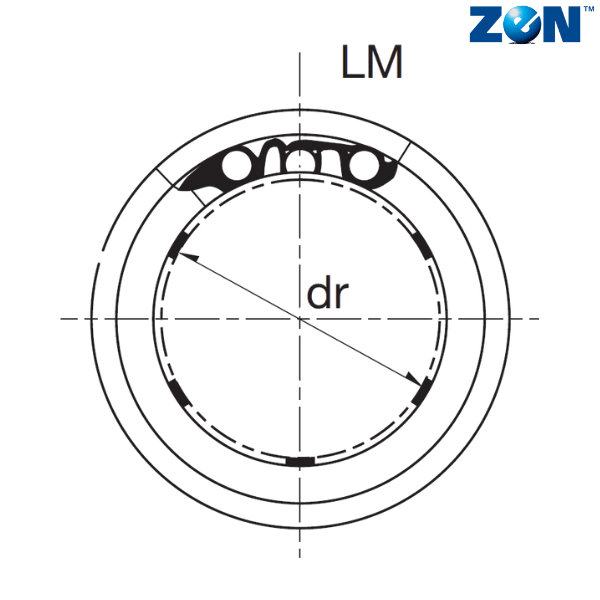

dr (mm) - 35
W (mm) - 2.1
D1 (mm) - 49
h (mm) - 2.5
h1 (mm) - 17
Tolerance (D) mm - 52
Tolerance (L) mm - 70
Tolerance (B) mm - 49.5
Radial Clearance - (-13)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
