Description
Brand - ZEN
Item Number - LM30-UU ZEN
Category - Linear Bearings (LM Series)
Type - Seal
Ball Circuit (mm) - 6
Weight (kg) - 0.25

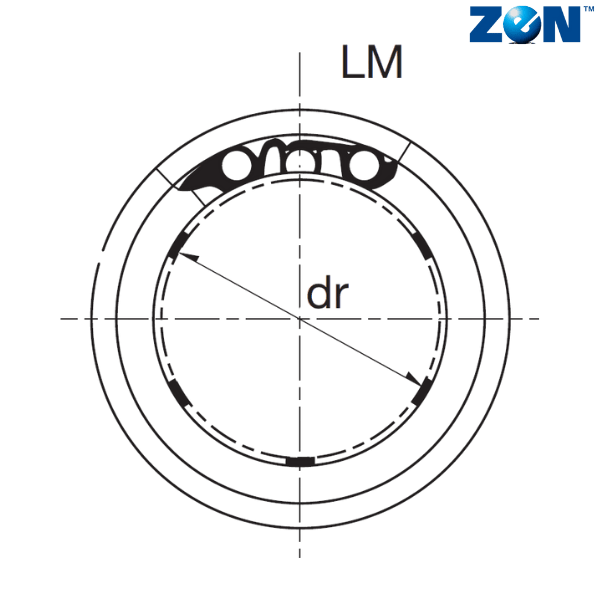

dr (mm) - 30
W (mm) - 1.85
D1 (mm) - 43
h (mm) - 2.5
h1 (mm) - 15
Tolerance (D) mm - 45
Tolerance (L) mm - 64
Tolerance (B) mm - 44.5
Radial Clearance - (-9)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
