LM287849D/LM287810 TIMKEN

Brand - TIMKEN
Item Number - LM287849D/LM287810 TIMKEN
Also Known As - LM287849D - LM287810
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 939.8
Bore Diameter (d) inch - 37
Outer Diameter (D) mm - 1333.5
Outer Diameter (D) inch - 52.5
Bearing Width across Cups (T) mm - 463.55
Bearing Width across Cups (T) inch - 18.25
Double Cone Width (B) mm - 463.55
Double Cone Width (B) inch - 18.25
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 19900000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 4480000
Factor (e) - 0.3
Factor (Y1) - 2
Factor (Y2) - 3
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 2970000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 667000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 1690000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 379000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 5160000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 1160000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 4.8
Maximum Shaft Fillet Radius (R) inch - 0.19
Cone Frontface Backing Diameter (da) mm - 999
Cone Frontface Backing Diameter (da) inch - 39.33
Maximum Housing Fillet Radius (r) mm - 12.7
Maximum Housing Fillet Radius (r) inch - 0.5
Cup Backface Backing Diameter (Db) mm - 1240
Cup Backface Backing Diameter (Db) inch - 48.82
Geometry Factor (G1) - 40833.7
Geometry Factor (G2) - 1438.6
Geometry Factor (Cg) - 0.4427
Weight (kg) - 2190.95
Weight (lbs) - 4830.24
Inner Part Number - LM287849D
Outer Part Number - LM287810
TDI - Double Inner Ring

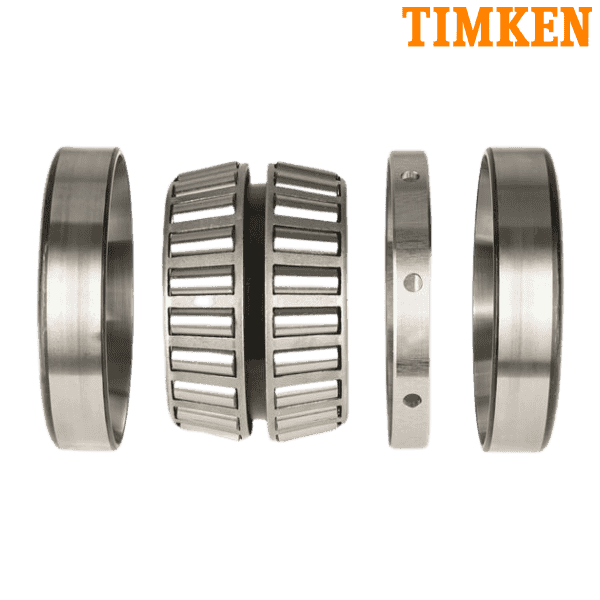

** Images are for representation purposes only
