LM287649D/LM287610 TIMKEN

Brand - TIMKEN
Item Number - LM287649D/LM287610 TIMKEN
Also Known As - LM287649D - LM287610
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 938.212
Bore Diameter (d) inch - 36.9375
Outer Diameter (D) mm - 1270
Outer Diameter (D) inch - 50
Bearing Width across Cups (T) mm - 400.05
Bearing Width across Cups (T) inch - 15.75
Double Cone Width (B) mm - 400.05
Double Cone Width (B) inch - 15.75
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 15900000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 3570000
Factor (e) - 0.3
Factor (Y1) - 2
Factor (Y2) - 3
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 2360000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 532000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 1350000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 303000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 4120000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 926000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 4.8
Maximum Shaft Fillet Radius (R) inch - 0.19
Cone Frontface Backing Diameter (da) mm - 990
Cone Frontface Backing Diameter (da) inch - 38.98
Maximum Housing Fillet Radius (r) mm - 12.7
Maximum Housing Fillet Radius (r) inch - 0.5
Cup Backface Backing Diameter (Db) mm - 1190
Cup Backface Backing Diameter (Db) inch - 46.85
Geometry Factor (G1) - 37220.5
Geometry Factor (G2) - 1611.3
Geometry Factor (Cg) - 0.4283
Weight (kg) - 1544.7
Weight (lbs) - 3405.44
Inner Part Number - LM287649D
Outer Part Number - LM287610
TDI - Double Inner Ring

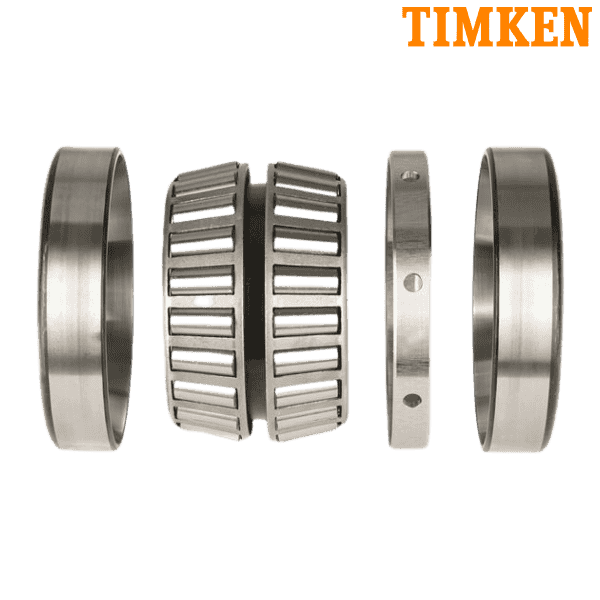

** Images are for representation purposes only
