Description
Brand - ZEN
Item Number - LM25-UU ZEN

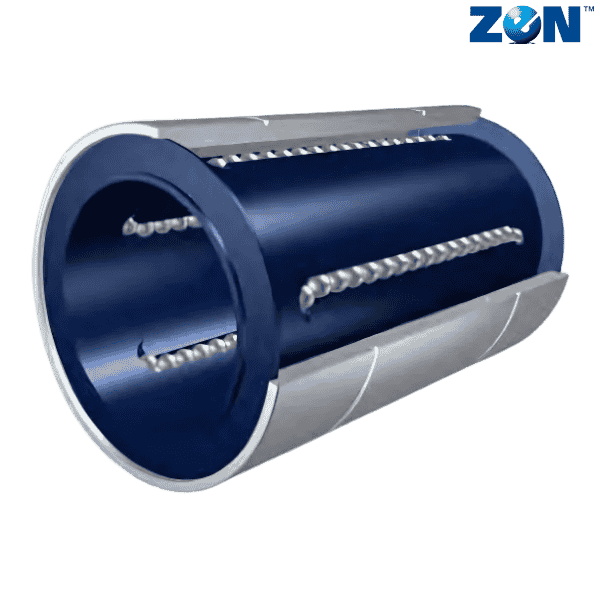

Category - Linear Bearings (LM Series)
Type - Seal
Ball Circuit (mm) - 6
Weight (kg) - 0.22

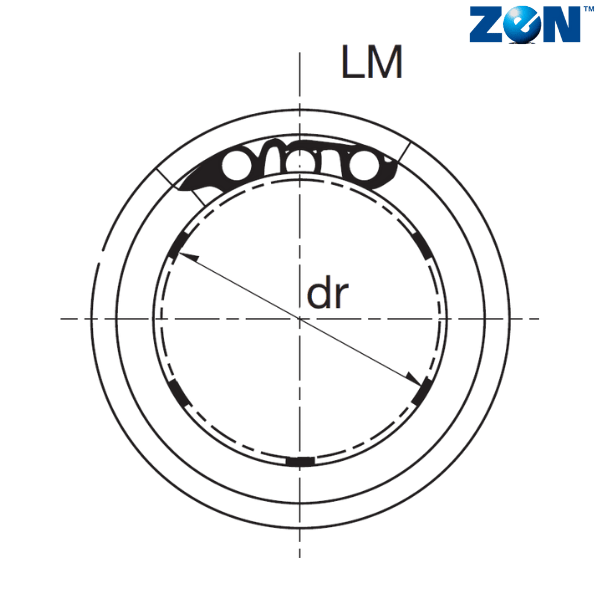

dr (mm) - 25

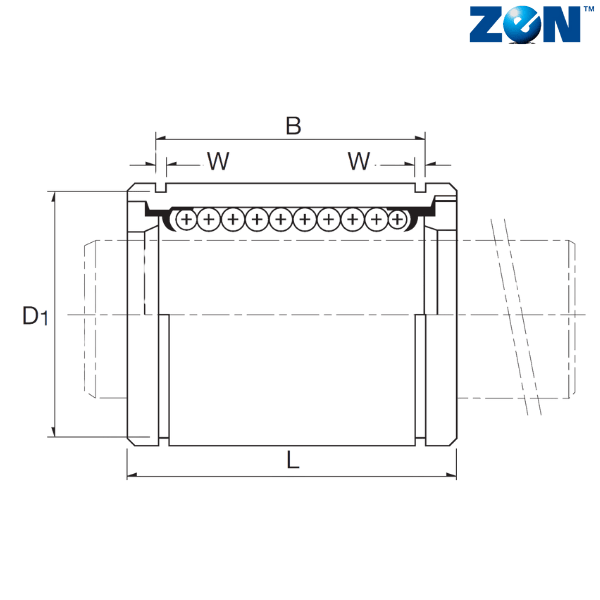

W (mm) - 1.85
D1 (mm) - 38
h (mm) - 2
h1 (mm) - 12
Tolerance (D) mm - 40
Tolerance (L) mm - 59
Tolerance (B) mm - 41
Radial Clearance - (-9)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
