LM246349NW/LM246310D TIMKEN

Brand - TIMKEN
Item Number - LM246349NW/LM246310D TIMKEN
Also Known As - LM246349NW - LM246310D
Category - Double Row Tapered Roller Bearing (TNASW Type)

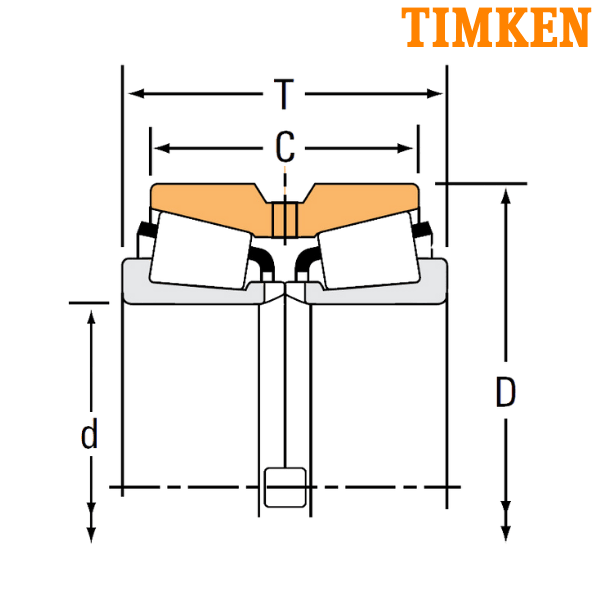

Bore Diameter (d) mm - 234.95
Bore Diameter (d) inch - 9.25
Outer Diameter (D) mm - 325.438
Outer Diameter (D) inch - 12.8125
Width (T) mm - 107.95
Width (T) inch - 4.25
Double Outer Ring Width (C) mm - 76.2
Double Outer Ring Width (C) inch - 3
Dynamic Load Rating (C1) N - 929000
Dynamic Load Rating (C1) lbf - 209000
Factor (e) - 0.33
Factor (Y1) - 2.02
Factor (Y2) - 3.01
Dynamic Radial Rating (90 million revolutions) (C90) N - 138000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 31100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 79200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 17800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 241000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 54200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.75

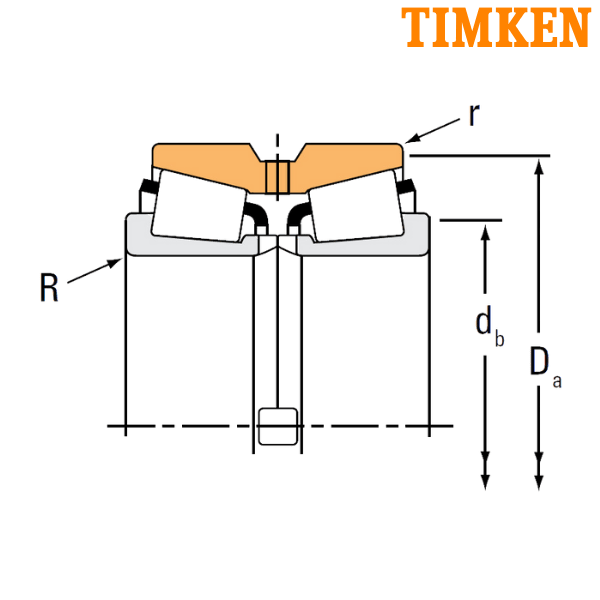

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 252
Backing Shoulder Diameter (db) inch - 9.92
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 312
Cup Frontface Backing Diameter (Da) inch - 12.28
Weight (kg) - 23.01
Weight (lbs) - 50.7
Inner Part Number - LM246349NW
Outer Part Number - LM246310D
TNASW - Double-Row Bearings are a Variant of Type TNA, having Chamfers and Slots on the Front Face of the Inner Ring

** Images are for representation purposes only
