Description
Brand - ZEN
Item Number - LM20-UU ZEN
Category - Linear Bearings (LM Series)
Type - Seal
Ball Circuit (mm) - 5
Weight (kg) - 0.087

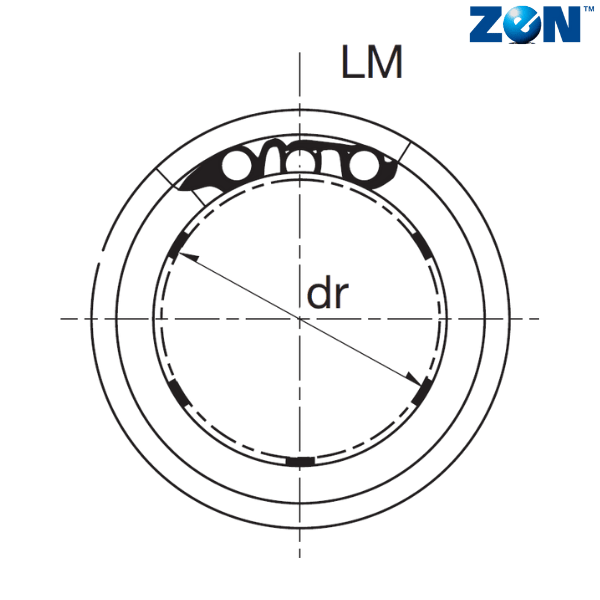

dr (mm) - 20
W (mm) - 1.6
D1 (mm) - 30.5
h (mm) - 1.5
h1 (mm) - 11
Tolerance (D) mm - 32
Tolerance (L) mm - 42
Tolerance (B) mm - 30.5
Radial Clearance - (-9)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
