Description
Brand - ZEN
Item Number - LM16-AJ ZEN
Category - Linear Bearings (LM Series)
Type - Adjustable
Ball Circuit (mm) - 5
Weight (kg) - 0.069

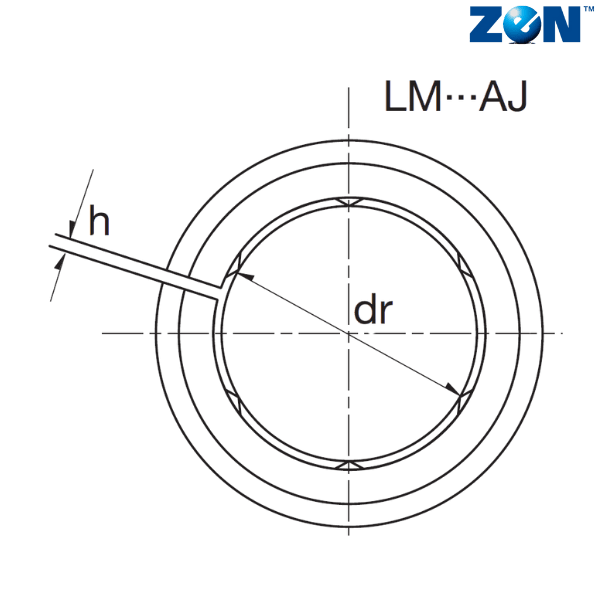

dr (mm) - 16
W (mm) - 1.6
D1 (mm) - 27
h (mm) - 1.5
h1 (mm) - 11
Tolerance (D) mm - 28
Tolerance (L) mm - 37
Tolerance (B) mm - 26.5
Radial Clearance - (-7)
Outer Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
